A drive shaft might not be the first thing that comes to mind when you think about truck performance, but when it fails, everything stops. Literally. For heavy-duty trucks, the drive shaft is the backbone of the driveline, transferring torque from the transmission to the differential and rear axle. Without it, wheels don’t turn, loads don’t move, and deliveries don’t happen.
Whether you’re a fleet manager trying to reduce downtime, a diesel tech diagnosing driveline noise, or a parts buyer sourcing a critical replacement, understanding what a drive shaft does, and how to keep it in peak condition, is essential.
In this guide, we’ll break down exactly what a drive shaft is on a truck, how it works, key components, failure signs, replacement tips, and how to choose the right one, including OEM and aftermarket options from trusted sources like FleetsWorld’s inventory of heavy-duty drive shaft components.

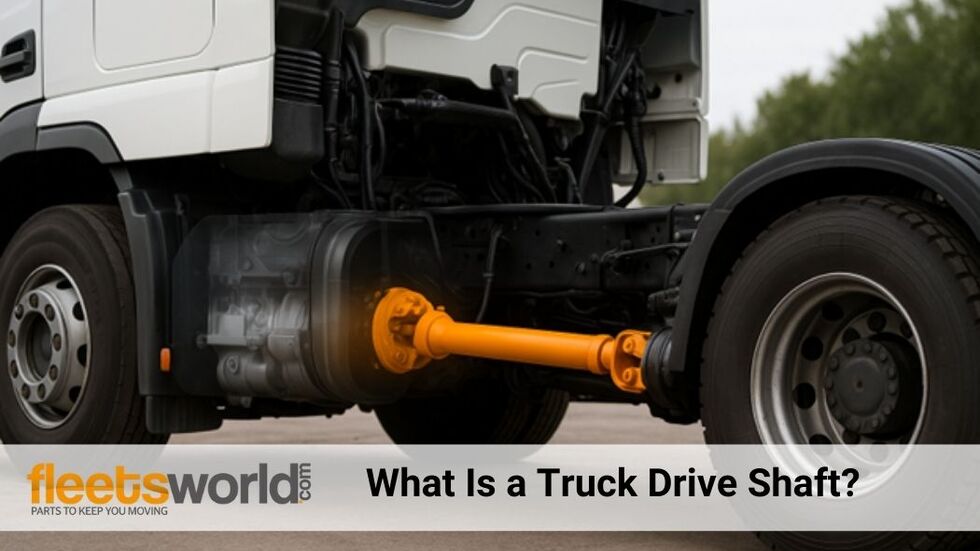

What Is a Truck Drive Shaft?
A truck drive shaft (also called a propeller shaft or driveshaft) is a critical component in a vehicle’s driveline, the system that transfers rotational power from the engine and transmission to the rear axle and wheels.
The Role of the Drive Shaft in Power Transmission
In rear-wheel drive (RWD), four-wheel drive (4WD), and all-wheel drive (AWD) configurations, the drive shaft connects the transmission output shaft to the differential, bridging the gap between front-mounted powertrains and rear-mounted drive wheels.
This rotational energy transfer allows the truck’s engine power to actually move the vehicle. Without the drive shaft, even the most powerful transmission is useless, because the energy it creates has no path to the rear axle.
Where It Fits in the Drivetrain System
In a standard heavy-duty driveline layout:
- The transmission output shaft spins the slip yoke or flange attached to the drive shaft.
- The drive shaft tube rotates at high speed, often supported by a center bearing in longer applications (e.g., sleeper cabs or tandem-axle trucks).
- At the opposite end, a universal joint (U-joint) connects to the differential input yoke, which ultimately drives the rear axle and wheels.
This design accommodates axle movement, suspension articulation, and chassis flex, while transmitting torque consistently, even under heavy load.
Whether it's a 1-piece drive shaft on a day cab or a 2-piece configuration in long-wheelbase trucks, the core purpose remains the same: reliable torque delivery without vibration, binding, or premature wear.
Main Components of a Truck Drive Shaft
Understanding the anatomy of a drive shaft helps diagnose issues, spec replacements, and ensure proper maintenance. While designs vary by vehicle class and driveline setup, most truck drive shafts share the same core components, each playing a vital role in torque transmission and driveline flexibility.
Drive Shaft Tube: The Torque Carrier
This is the long cylindrical section of the shaft that actually transmits torque. It's typically made from high-strength steel or aluminum, engineered to handle rotational stress, road impacts, and vibrations. The driveline tube must be perfectly straight and balanced, or it can cause excessive drive shaft vibration at highway speeds.
Universal Joints (U-Joints): Flex in Motion
These critical joints allow the shaft to operate at varying angles as the suspension moves or the axle articulates. Most heavy-duty trucks use cross-and-bearing style U-joints, which require proper lubrication to avoid premature failure. A dry or worn U-joint is a common source of clunking noises, vibration, and even complete driveline separation.
Slip Yoke or Splines: Compensating for Travel
At the front of the shaft, you'll find either a slip yoke (which inserts into the transmission) or a splined slip joint (for 2-piece shafts). These allow the shaft to lengthen and shorten as the suspension compresses or extends, especially crucial in vehicles with lift kits or high axle articulation.
Center Support Bearing (on 2-Piece Shafts)
Long-wheelbase trucks often use a 2-piece drive shaft, which requires a center support bearing. This bearing mounts to the chassis and supports the intermediate shaft, reducing flex and maintaining alignment. If this bearing fails, expect high-speed vibration, metal-on-metal noise, and potential damage to nearby components.
End Yokes and Flanges: The Connection Points
Each end of the drive shaft connects to the transmission and differential via yokes or flanges. These must match OEM specs for spline count, bolt pattern, and fit. Improper fitment here can throw off driveshaft angle, causing misalignment and early wear.
Driveshaft Phasing and Alignment: What You Need to Know
For any drive shaft to perform smoothly at high RPMs, it must be correctly phased and aligned. In heavy-duty trucks, where power and distance meet, improper phasing can lead to severe driveline vibrations, accelerated bearing wear, and costly downstream failures.
Why Proper Phasing Matters
Phasing refers to the alignment of the U-joint yokes on either end of a drive shaft. In a correctly phased shaft, the yokes are positioned in line with each other, allowing the rotational speeds and angular velocity of the shaft to remain constant.
When yokes are misaligned, the speed of the output shaft fluctuates unevenly. This produces a cyclical driveline vibration, increasing stress on joints, seals, and bearings.
Effects of Misalignment on Wear and Vibration
An out-of-phase or misaligned shaft creates a ripple effect:
- Vibration at highway speeds, often mistaken for tire or hub issues
- Premature U-joint and center bearing failure
- Increased wear on output seals and pinion yokes
- Noise under load or during acceleration
This is especially common after incorrect reinstallation, lift kit installations, or using non-OEM-length shafts.
How Phasing Affects Drivetrain Noise
Unphased shafts don’t just wear out parts, they speak up. Common symptoms include:
- Rhythmic whining or humming that increases with speed
- A metallic “chatter” or clunk under load
- Noise that disappears when coasting, only to return under acceleration
Proper phasing, paired with the right driveline angle, ensures smooth, quiet operation. It’s a crucial step when installing a custom driveshaft or reassembling after differential work.
DIY Driveshaft Replacement & Repair: What to Know
Replacing a drive shaft isn’t the most complex job on a heavy-duty truck, but getting it wrong can cost time, safety, and drivetrain damage. Whether you're a technician doing field repairs or a fleet supervisor guiding a shop crew, here’s what’s involved in a safe and effective replacement.
Tools Needed for Driveshaft Work
Before starting, gather the right equipment:
- Torque wrench (calibrated to spec)
- U-joint press or C-clamp
- 12-point socket set (for flange bolts)
- Pry bar and dead-blow hammer
- Safety stands or lift
- Threadlocker and anti-seize
- Marking pen (to preserve yoke alignment)
Optional but helpful:
- Driveshaft angle gauge
- Dial indicator (for checking runout)
Step-by-Step Removal Process
- Secure the truck and chock the wheels. Disconnect the battery if near electronics.
- Mark the driveshaft and yoke flanges for reinstallation at the same phase.
- Remove U-joint retaining bolts at the rear axle and/or transmission.
- Carefully slide the slip yoke or flange out of the transmission or carrier.
- Support the shaft, especially 2-piece types, to avoid dropping and bending.
If U-joints are being replaced:
- Use a U-joint press or hammer method to drive out the caps carefully.
- Clean all bores before reassembly.
Installation Tips and Techniques
- Install new or rebuilt shaft by reversing the removal process.
- Align the phasing marks to avoid vibration.
- Use threadlocker on flange bolts, and torque to OEM spec.
- Ensure the center support bearing (if applicable) is tight and centered.
- Verify shaft movement in the slip yoke, it should move smoothly but not bind.
Once installed:
- Test at low speeds first
- Listen for any unusual sounds or shuddering
- Re-check bolt torque after a short test drive
Maintenance Tips to Extend Driveshaft Lifespan
A properly maintained drive shaft can deliver hundreds of thousands of miles of reliable service. But skip routine checks, and even the toughest shaft can become a failure point. Here are the core maintenance practices that keep your driveline operating smoothly, and your trucks moving.
Grease U-Joints Regularly
Universal joints are wear items, and lubrication is their lifeline. Dry joints are a leading cause of premature failure and catastrophic driveline separation.
- Grease every 5,000–10,000 miles (or per OEM schedule)
- Use heavy-duty lithium or moly-based grease
- Ensure new grease purges old material and contaminants from the caps
Pro tip: Rotate the shaft as you grease to ensure full distribution.
Check Driveshaft Angle and Alignment
Misalignment causes excessive vibration, bearing wear, and U-joint fatigue. Especially after:
- Suspension lifts or modifications
- Transmission replacements
- Custom drive shaft installs
Check:
- Pinion angle vs. output shaft angle (use an inclinometer)
- Phasing of the yokes on multi-piece shafts
- That the center support bearing is square and tight to the chassis
Improper angle leads to critical speed vibration and early wear, both easily avoided with proper alignment.
Inspect for Early Wear and Movement
Include the driveshaft in every PM walkaround. Look for:
- Loose or missing driveshaft fasteners
- Grease slinging at U-joints (a sign of worn seals)
- Excess lateral play at slip joints or yokes
- Damage from road debris, rocks, or salt corrosion
Replace Bearings and Seals Before They Fail
A failing center support bearing or output seal can take down your entire driveline. If you hear:
- Howling at speed
- Rattling during shifts
- Or see fluid leaking from the transmission slip yoke
… don’t wait. Proactive replacement is far cheaper than a failed driveshaft at 65 mph.
Keep Your Driveline Moving
Whether you’re running a single rig or managing a nationwide fleet, understanding what a drive shaft is on a truck, and how to maintain or replace it, can make the difference between on-time deliveries and unexpected downtime.
From the universal joint to the slip yoke, every component of the drive shaft plays a role in safely transferring torque from the transmission to the wheels. And when one part fails, the entire system is compromised.
Key takeaways:
- Monitor for vibration, clunking, and visible wear
- Maintain proper lubrication and alignment
- Know when to rebuild vs. replace, and where to source smart
- Use accurate measurements and cross-reference OEM specs before buying
At FleetsWorld, we understand the real-world impact of a $40 U-joint or a $600 drive shaft. That’s why our online catalog is built for speed, clarity, and confidence, with OEM replacements, fleet-grade aftermarket options, and expert support to help you get the right shaft the first time.
Because when a truck is off the road, it’s not just a part that’s missing, it’s time, revenue, and reliability. Let’s keep your driveline moving.
Frequently Asked Questions
What Does A Drive Shaft Do On A Truck?
A drive shaft transmits rotational power from the transmission output shaft to the rear axle, allowing the wheels to turn. It plays a critical role in the drivetrain by ensuring torque reaches the wheels, even as the suspension moves and the chassis flexes.
How Do I Know If My Truck's Drive Shaft Is Bad?
Common signs include vibration at high speeds, clunking during acceleration or shifting, and visible play at the U-joints or slip yoke. A failing drive shaft can also cause noise under load and difficulty turning due to seized joints.
What’s The Difference Between A Drive Shaft And A Prop Shaft?
They’re essentially the same component with different names. “Drive shaft” is commonly used in the U.S., while “propeller shaft” or “prop shaft” is more common internationally. Both refer to the part that delivers torque from the transmission to the differential.
Can I Replace A Drive Shaft Myself?
Yes, with the right tools and mechanical knowledge. Basic replacements require a torque wrench, U-joint press, and safety stands. For accurate results, you’ll also need to check driveshaft angle, ensure correct phasing, and torque all fasteners to spec. FleetsWorld offers direct-fit parts and kits for easier DIY replacement.
