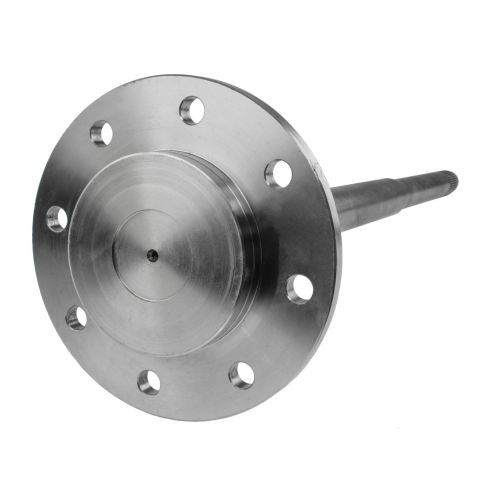

10024296 Bolt Pattern Spline Drive Axle Shaft for
Couldn't load pickup availability
AXLE GM9.5" 33SPL 31.81" 8 LUG
UPC: 00698231338926
App/Model: GM 9.5
Brake Pilot Diameter: 2.224 Inch
Differential Model: GM 9.5

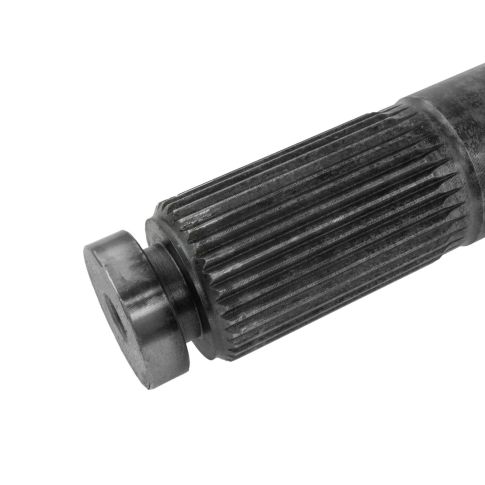

Inboard Spline Quantity: 33
Prop 65 Yes/No: No
Shaft Length: 31.813 Inch
Shaft Material: 1541 Manganese
Taxonomy A: LD Differential
Taxonomy B: Axle Shafts
Taxonomy C: Axles - Rear
Taxonomy D: Left|Right
Wheel Bolt Pattern Size: 8 x 6.5 Inch
For GM 9.5" (14 Bolt); 33.6875" Overall Length; 8 x 6.5 Lug Pattern; 33 Spline
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- SVL: 10024296
- TEN Factory: MG27118
Applications:
- 1992-1999 Chevrolet C1500 Suburban
- 1989-2000 Chevrolet C2500
- 1992-1999 Chevrolet C2500 Suburban
- 1988-1989 Chevrolet C35
- 1988-1989 Chevrolet C3500
- 1992-1999 Chevrolet K1500 Suburban
- 1989-2000 Chevrolet K2500
- 1992-1999 Chevrolet K2500 Suburban
- 1988-1989 Chevrolet K3500
- 1989-1989 Chevrolet R2500
- 1989-1989 Chevrolet R3500
- 1989-1989 Chevrolet V3500
- 1992-1999 GMC C1500 Suburban
- 1989-2000 GMC C2500
- 1992-1999 GMC C2500 Suburban
- 1988-1989 GMC C3500
- 1992-1999 GMC K1500 Suburban
- 1989-2000 GMC K2500
- 1992-1999 GMC K2500 Suburban
- 1988-1989 GMC K3500
- 1989-1989 GMC R2500
- 1988-1989 GMC R3500
- 1988-1989 GMC V3500
10024296 Cross Reference
- SVL: 10024296
- : AXK-185
- TEN Factory: MG27118
