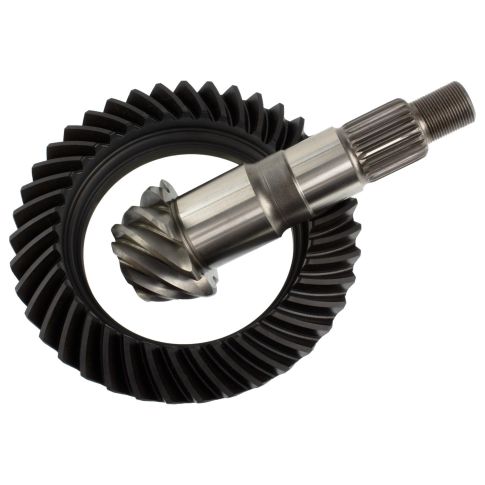

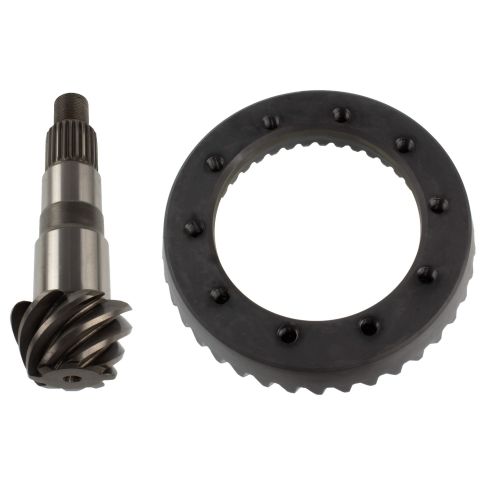

10026639 Ratio For ()
Couldn't load pickup availability
RP DANA 30 4.88 NON-RUBICON MG
UPC: 00698231835678
App/Model: Dana AdvanTEK M186|Dana 30 JK Reverse|Dana 30 JL Reverse
Cover Bolt Quantity: 10
Differential Carrier Break: 3.73 Ratio and Higher
Differential Model: Dana AdvanTEK M186|Dana 30 JK Reverse|Dana 30 JL Reverse
Gear Ratio: 4.88
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.376 Inch
Pinion Spline Count: 24
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.125 Inch
Ring Gear Rotation: Reverse
Ring Gear Tooth Quantity: 39
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front
Taxonomy D: 4.88
Dana 30 Axle; w/4.88 Axle Ratio
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Spicer: 10026639
- G2 Axle and Gear: 2-2050-488R
- Yukon Gear and Axle: 24275
- Richmond Gear: 69-0478-1
- Dorman: 697-344
- EXCEL from Richmond: D30488FJK
- Nitro Gear & Axle: D30JK-488-NG
- Revolution Gear & Axle: D30JK-488R
- Revolution Gear & Axle: D30JK-JL-488R
- Yukon Gear and Axle: YG D30JL-488R
- Yukon Gear and Axle: YG D30SR-488JK
Applications:
- 2007-2022 Jeep Wrangler
- 2018-2018 Jeep Wrangler JK
10026639 Cross Reference
- Spicer: 10026639
- G2 Axle and Gear: 2-2050-488R
- Yukon Gear and Axle: 24275
- Richmond Gear: 69-0478-1
- Dorman: 697-344
- EXCEL from Richmond: D30488FJK
- Nitro Gear & Axle: D30JK-488-NG
- Revolution Gear & Axle: D30JK-488R
- Revolution Gear & Axle: D30JK-JL-488R
- Yukon Gear and Axle: YG D30JL-488R
- Yukon Gear and Axle: YG D30SR-488JK
