10026645 Ratio For ()
Couldn't load pickup availability

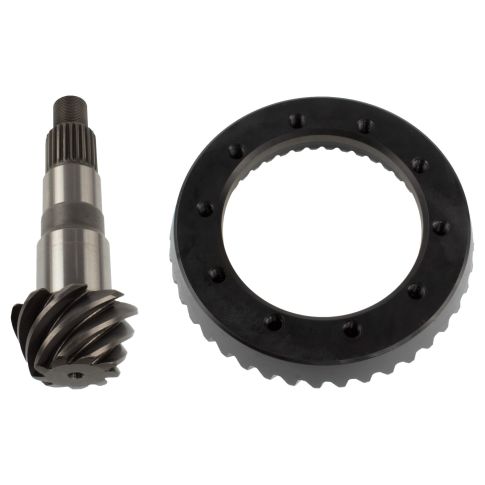

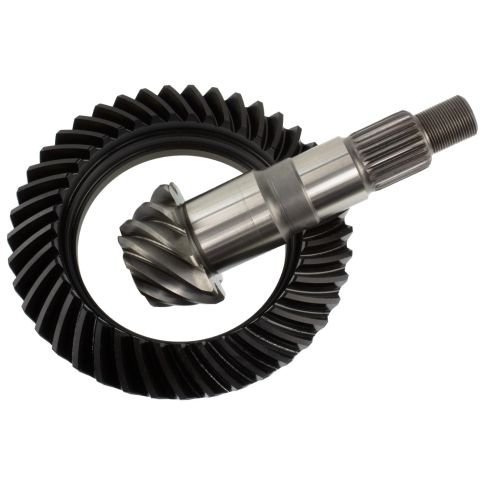

RP DANA 30 4.56 NON-RUBICON MG
UPC: 00698231835661
App/Model: Dana AdvanTEK M186|Dana 30 JK Reverse|Dana 30 JL Reverse
Cover Bolt Quantity: 10
Differential Carrier Break: 3.73 Ratio and Higher
Differential Model: Dana AdvanTEK M186|Dana 30 JK Reverse|Dana 30 JL Reverse
Gear Ratio: 4.56
Pinion Gear Tooth Quantity: 9
Pinion Shaft Diameter: 1.375 Inch
Pinion Spline Count: 24
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.125 Inch
Ring Gear Rotation: Reverse
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front
Taxonomy D: 4.56
Dana 30 Axle; w/4.56 Axle Ratio
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Spicer: 10026645
- G2 Axle and Gear: 2-2050-456R
- Yukon Gear and Axle: 24599
- Dorman: 697-343
- EXCEL from Richmond: D30456FJK
- Nitro Gear & Axle: D30JK-456-NG
- Revolution Gear & Axle: D30JK-456R
- Revolution Gear & Axle: D30JK-JL-456R
- Yukon Gear and Axle: YG D30JL-456R
- Yukon Gear and Axle: YG D30SR-456JK
Applications:
- 2007-2022 Jeep Wrangler
- 2018-2018 Jeep Wrangler JK
10026645 Cross Reference
- Spicer: 10026645
- G2 Axle and Gear: 2-2050-456R
- Yukon Gear and Axle: 24599
- Dorman: 697-343
- EXCEL from Richmond: D30456FJK
- Nitro Gear & Axle: D30JK-456-NG
- Revolution Gear & Axle: D30JK-456R
- Revolution Gear & Axle: D30JK-JL-456R
- Yukon Gear and Axle: YG D30JL-456R
- Yukon Gear and Axle: YG D30SR-456JK
