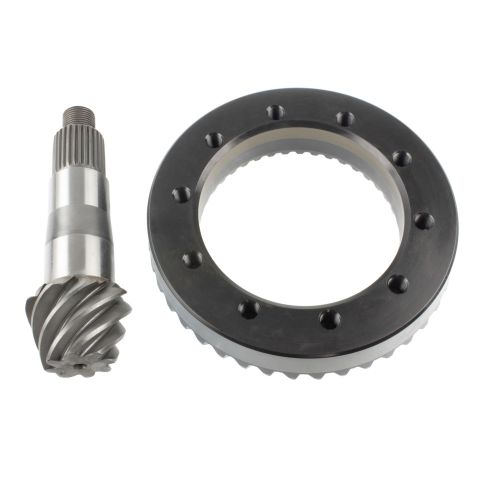

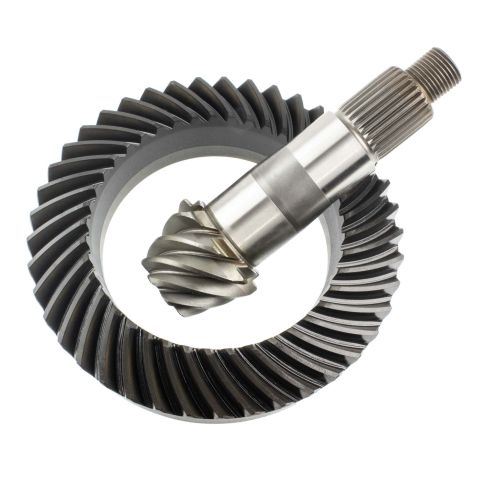

10051004 Ratio For ()
Couldn't load pickup availability
RP DANA 44 5.13 FRONT JL/JT
UPC: 00698231476918
App/Model: Dana AdvanTEK M210|Dana 44 JL Reverse
Cover Bolt Quantity: 12
Differential Carrier Break: 3.07 Ratio and Higher
Differential Model: Dana AdvanTEK M210|Dana 44 JL Reverse
Gear Ratio: 5.13
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.75 Inch
Pinion Spline Count: 28
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 8.27 Inch
Ring Gear Rotation: Reverse
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front
Taxonomy D: 5.13
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Spicer: 10051004
- Revolution Gear & Axle: D44-M210-513R
- EXCEL from Richmond: D44513JLF
- Revolution Gear & Axle: D44JL-513R
- Yukon Gear and Axle: YG D44JL-513R
Applications:
- 2020-2022 Jeep Gladiator
- 2018-2022 Jeep Wrangler
10051004 Cross Reference
- Spicer: 10051004
- Revolution Gear & Axle: D44-M210-513R
- EXCEL from Richmond: D44513JLF
- Revolution Gear & Axle: D44JL-513R
- Yukon Gear and Axle: YG D44JL-513R
