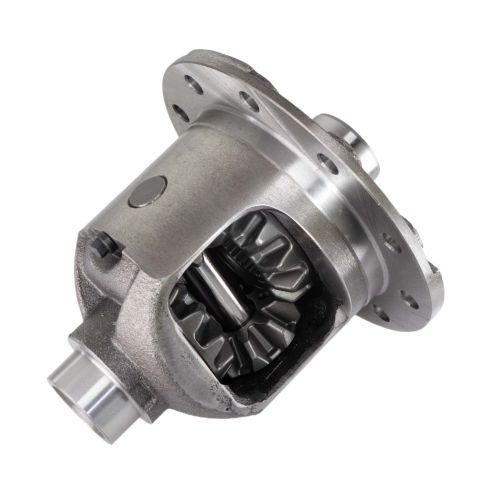

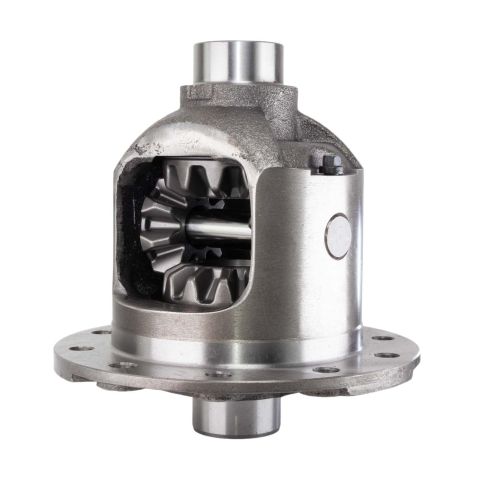

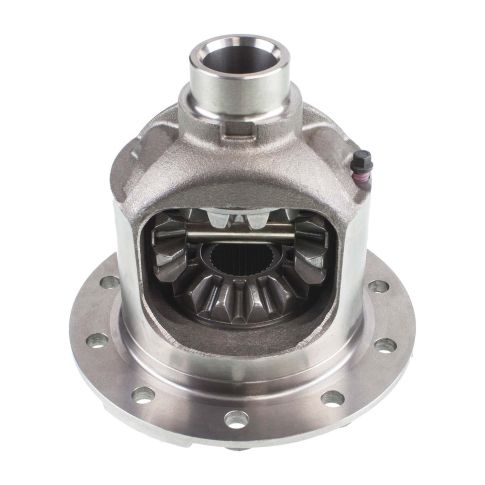

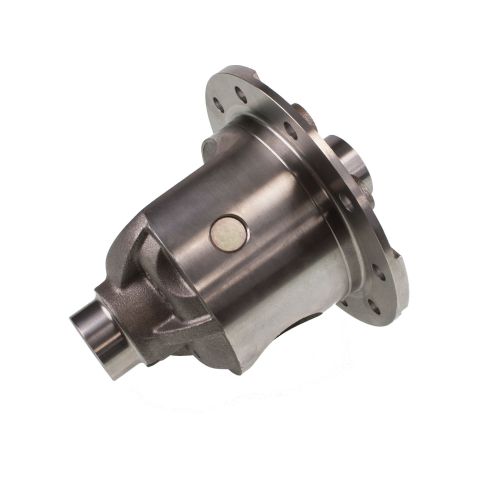

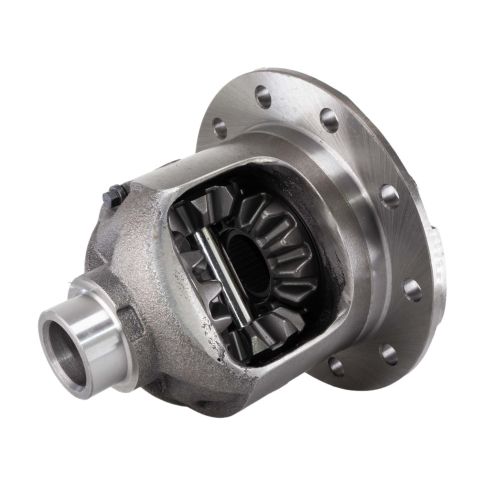

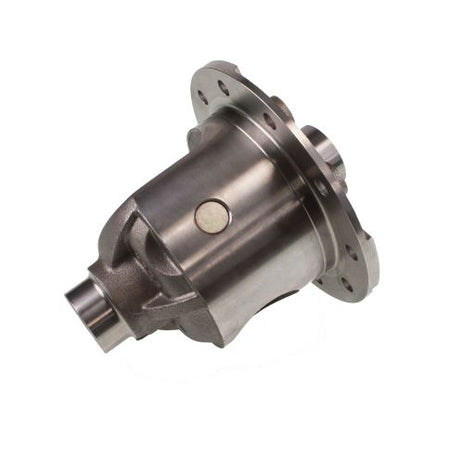

12471540 Differential Carrier
Couldn't load pickup availability
OLC GM 8.6" 30SPL 2.73+ \'99-ON
UPC: 00698231522783
App/Model: GM 8.5|GM 8.625
Axle Shaft Spline Quantity: 30
Differential Carrier Break: 2.73 Ratio and Higher
Differential Model: GM 8.5|GM 8.625
Prop 65 Yes/No: No
Taxonomy A: LD Differential
Taxonomy B: Differential Carriers
Taxonomy C: Open Carrier Cases-Loaded
Taxonomy D: Front|Rear
Type: Open
For GM 8.625" (10 Bolt); 30 Spline; 1.31" Axle Spline Diameter; 2.73 and Higher; Includes Internal Kit; Open; 1999 And Later Requires Use Of Bearing LM603049 And Race LM603012; 1998 And Earlier Use Bearing LM102949 And Race LM102911
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- General Motors: 12471540
- General Motors: 19244836
- General Motors: 25824246
- General Motors: 26060748
- American Axle & Manufacturing: 40007876
- American Axle & Manufacturing: 40048044
- Motive Gear: GM8.6E
- EXCEL from Richmond: XL-5050
- Yukon Gear and Axle: YC G40048044
Applications:
- 1991-1996 Buick Commercial Chassis
- 1988-1990 Buick Electra
- 2004-2007 Buick Rainier
- 1991-1996 Buick Roadmaster
- 1991-1992 Cadillac Brougham
- 1999-2000 Cadillac Escalade
- 2002-2013 Cadillac Escalade
- 2003-2013 Cadillac Escalade ESV
- 2002-2013 Cadillac Escalade EXT
- 2007-2013 Chevrolet Avalanche
- 2002-2006 Chevrolet Avalanche 1500
- 1988-2005 Chevrolet Blazer
- 1988-1999 Chevrolet C1500
- 1992-1999 Chevrolet C1500 Suburban
- 1988-1996 Chevrolet Caprice
- 2007-2013 Chevrolet Colorado
- 1996-2013 Chevrolet Express 1500
- 1988-1995 Chevrolet G10
- 1988-1995 Chevrolet G20
- 1994-1996 Chevrolet Impala
- 1988-1999 Chevrolet K1500
- 1993-1999 Chevrolet K1500 Suburban
- 1988-1991 Chevrolet K2500
- 1988-1988 Chevrolet R10 Suburban
- 1989-1991 Chevrolet R1500 Suburban
- 1994-2004 Chevrolet S10
- 1988-1994 Chevrolet S10 Blazer
- 1999-2020 Chevrolet Silverado 1500
- 2007-2007 Chevrolet Silverado 1500 Classic
- 2001-2003 Chevrolet Silverado 1500 HD
- 2005-2006 Chevrolet Silverado 1500 HD
- 2007-2007 Chevrolet Silverado 1500 HD Classic
- 2003-2006 Chevrolet SSR
- 1995-2013 Chevrolet Suburban 1500
- 2000-2013 Chevrolet Suburban 2500
- 1995-2013 Chevrolet Tahoe
- 2002-2005 Chevrolet Trailblazer
- 2007-2009 Chevrolet Trailblazer
- 2002-2006 Chevrolet Trailblazer EXT
- 1988-1988 Chevrolet V10 Suburban
- 1989-1991 Chevrolet V1500 Suburban
- 1988-1988 Chevrolet V20 Suburban
- 1989-1991 Chevrolet V2500 Suburban
- 1988-1999 GMC C1500
- 1992-1999 GMC C1500 Suburban
- 2004-2012 GMC Canyon
- 2002-2009 GMC Envoy
- 2002-2006 GMC Envoy XL
- 2004-2005 GMC Envoy XUV
- 1988-1995 GMC G1500
- 1988-1995 GMC G2500
- 1994-2005 GMC Jimmy
- 1988-1999 GMC K1500
- 1992-1999 GMC K1500 Suburban
- 1988-1991 GMC K2500
- 1988-1991 GMC R1500 Suburban
- 1996-2013 GMC Savana 1500
- 2007-2013 GMC Sierra
- 1999-2020 GMC Sierra 1500
- 2007-2007 GMC Sierra 1500 Classic
- 1994-2004 GMC Sonoma
- 1992-1993 GMC Typhoon
- 1988-1991 GMC V1500 Suburban
- 1988-1991 GMC V2500 Suburban
- 1992-2013 GMC Yukon
- 2000-2013 GMC Yukon XL 1500
- 2006-2010 Hummer H3
- 2009-2010 Hummer H3T
- 2003-2008 Isuzu Ascender
- 1988-1992 Oldsmobile Custom Cruiser
- 1988-1989 Pontiac Bonneville
- 2005-2009 Saab 9-7x
12471540 Cross Reference
- General Motors: 12471540
- General Motors: 19244836
- General Motors: 25824246
- General Motors: 26060748
- American Axle & Manufacturing: 40007876
- American Axle & Manufacturing: 40048044
- Motive Gear: GM8.6E
- EXCEL from Richmond: XL-5050
- Yukon Gear and Axle: YC G40048044
