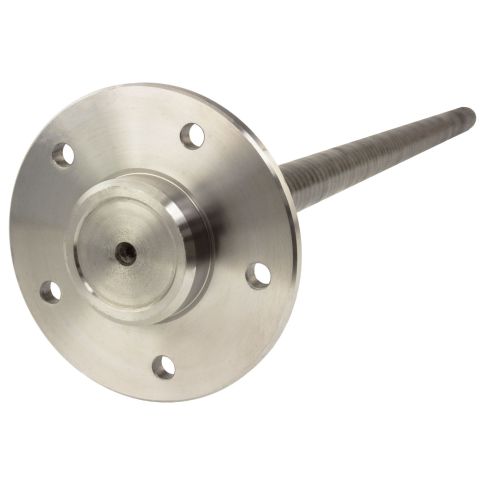

2022644 Bolt Pattern Spline Drive Axle Shaft for
Couldn't load pickup availability
AXLE GM7.5" 26SPL 30.50" 5 LUG
UPC: 00698231177334
App/Model: GM 7.5
Axle Flange Bolt Hole Quantity: 10
Axle Type: Semi-Floating
Bearing(s) Included: No
Brake Pilot Diameter: 2.776 Inch
Cover Bolt Quantity: 10
Differential Model: GM 7.5

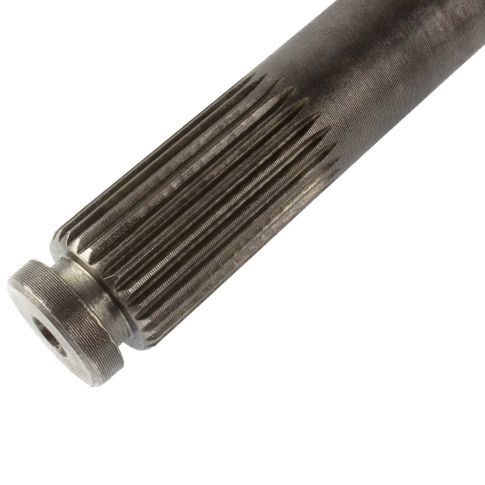

Inboard Spline Quantity: 26
Prop 65 Yes/No: No
Seal Included: No
Shaft Length: 30.5 Inch
Shaft Material: 1541 Manganese
Taxonomy A: LD Differential
Taxonomy B: Axle Shafts
Taxonomy C: Axles - Rear
Taxonomy D: Left|Right
Wheel Bolt Pattern Size: 5 x 4.75 Inch
Wheel Stud Thread Diameter: .449 Inch
For GM 7.5"/7.625" (10 Bolt); 30.5" Overall Length; 5 x 4.75 Lug Pattern; 26 Spline
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- SVL: 2022644
- General Motors: 22519891
- Hollander: 447-1137
- EXCEL from Richmond: 92-25125
- SVL: DS2022644
- Yukon Gear and Axle: YA G22506477
- Yukon Gear and Axle: YAG22506477
Applications:
- 1985-1986 Buick Electra
- 1979-1980 Buick Estate Wagon
- 1979-1985 Buick LeSabre
- 1982-1990 Chevrolet Caprice
- 1982-1985 Chevrolet Impala
- 1982-1983 Chevrolet Malibu
- 1982-1988 Chevrolet Monte Carlo
- 1982-1986 Pontiac Bonneville
- 1982-1987 Pontiac Grand Prix
- 1983-1986 Pontiac Parisienne
- 1987-1989 Pontiac Safari
2022644 Cross Reference
- SVL: 2022644
- General Motors: 22519891
- Hollander: 447-1137
- EXCEL from Richmond: 92-25125
- SVL: DS2022644
- Yukon Gear and Axle: YA G22506477
- Yukon Gear and Axle: YAG22506477
