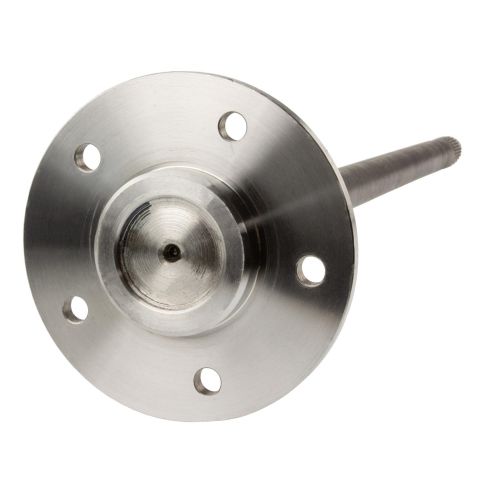

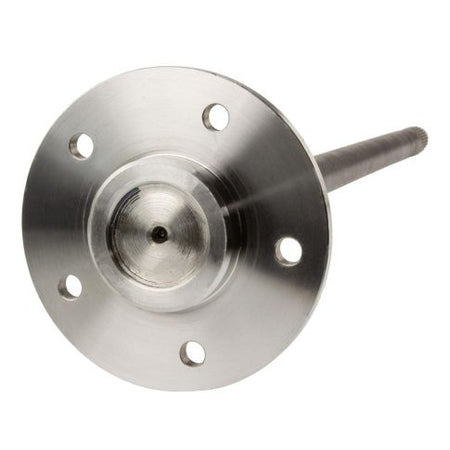

2022645 Bolt Pattern Spline Drive Axle Shaft for
Couldn't load pickup availability
AXLE GM8.5" 28SPL 30.32" 5 LUG
UPC: 00698231096284
App/Model: GM 8.5
Axle Flange Bolt Hole Quantity: 10
Axle Type: Semi-Floating
Bearing(s) Included: No
Brake Pilot Diameter: 3.059 Inch
Cover Bolt Quantity: 10
Differential Model: GM 8.5

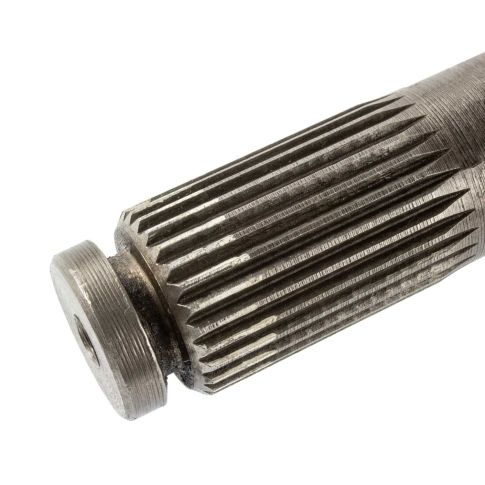

Inboard Spline Quantity: 28
Prop 65 Yes/No: No
Seal Included: No
Shaft Length: 30.438 Inch
Shaft Material: 1541 Manganese
Taxonomy A: LD Differential
Taxonomy B: Axle Shafts
Taxonomy C: Axles - Rear
Taxonomy D: Left|Right
Wheel Bolt Pattern Size: 5 x 5 Inch
Wheel Stud Thread Diameter: .516 Inch
For GM 8.5" (10 Bolt); 30.375" Overall Length; 5 x 5 Lug Pattern; 28 Spline
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- SVL: 2022645
- Hollander: 447-1205
- EXCEL from Richmond: 92-25150
- SVL: DS2022645
- Yukon Gear and Axle: YA G25501599
- Yukon Gear and Axle: YAG25501599
Applications:
- 1977-1985 Buick Electra
- 1977-1985 Buick LeSabre
- 1987-1988 Cadillac Brougham
- 1986-1988 Cadillac Fleetwood
- 1977-1988 Chevrolet Caprice
- 1977-1985 Chevrolet Impala
- 1977-1984 Oldsmobile 98
- 1977-1981 Oldsmobile Custom Cruiser
- 1977-1979 Oldsmobile Delta 88
- 1977-1979 Oldsmobile Starfire
- 1977-1981 Pontiac Bonneville
- 1980-1981 Pontiac Catalina
- 1977-1983 Pontiac Parisienne
- 1986-1986 Pontiac Parisienne
2022645 Cross Reference
- SVL: 2022645
- Hollander: 447-1205
- EXCEL from Richmond: 92-25150
- SVL: DS2022645
- Yukon Gear and Axle: YA G25501599
- Yukon Gear and Axle: YAG25501599
