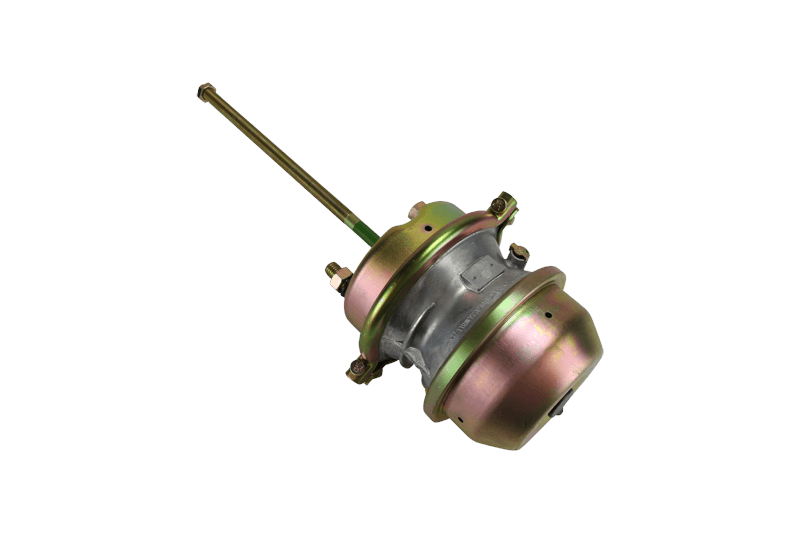

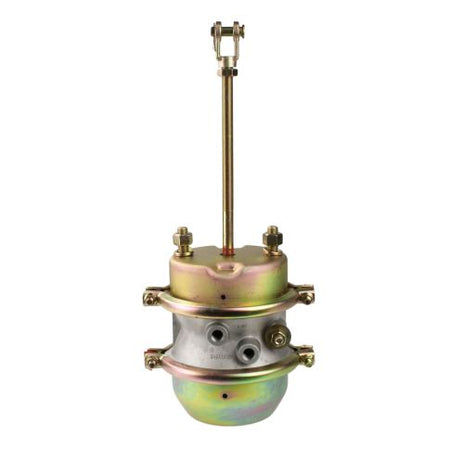

Stroke: 2.50"/64mmPush Rod Length: 9.50"Length from mounting bracket to end of Spring Housing: 9.3", 235mmLength of Piggyback: 6.8", 172mmDimension at rolled Spring Housing flange: 7.5", 191mmDimension at Service Clampband: 9.4", 239mmStud Spacing: 4.75 in. (120.7mm)Pushrod Length from face of Service Housing: 10.00"S1 = Service Clampband position (0°)T = Air Port position (90°)Stud Type: 5/8-11 UNC Grade 5Stud Length: 1.50 in. (38.1mm)Pushrod Thread: 5/8-18 UNFAir Port Threads: 3/8-18 NPTFMaximum Air Pressure: 150 psi. CROSS REFERENCES: 2424-TI, VTC-713E
