24549 Ratio For ()
Couldn't load pickup availability

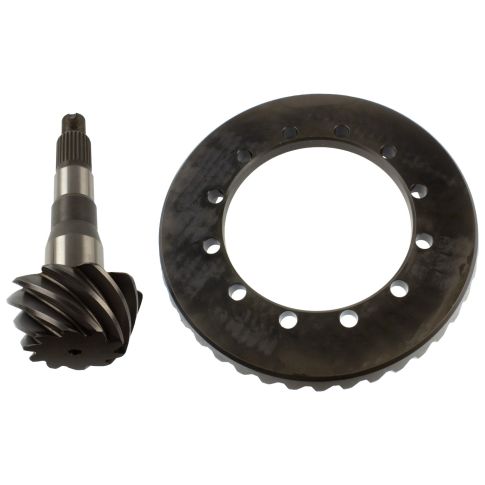

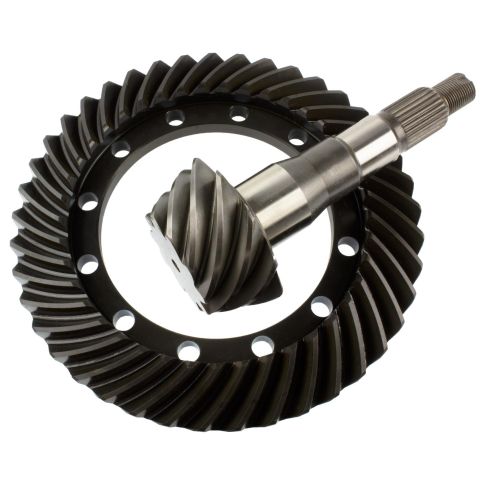

RP TOYOTA LANDCRUISER 4.11 MG
UPC: 00698231041383
App/Model: Toyota 9.5
Cover Bolt Quantity: Dropout
Differential Model: Toyota 9.5
Gear Ratio: 4.11
Pinion Gear Tooth Quantity: 10
Pinion Shaft Diameter: 1.57 Inch
Pinion Spline Count: 27
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 12
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 9.25 Inch
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front|Rear
Taxonomy D: 4.11
For Toyota 9.5"; 4.11 Ratio; 1969-1978 Applications Require A 27 Spline Pinion Flange; Some Later Applications May Require Purchase Of Factory Bolt and Nut Kit, Requires Crush Sleeve PN[41231-60010]; Front or Rear - FJ40, FJ45, FJ55, FJ60, HJ60, FJ62, BJ70; Rear - FJ80, FJZ80, HDJ80, HZJ80, HZJ81
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Yukon Gear and Axle: 24549
- EXCEL from Richmond: TL95411
- Nitro Gear & Axle: TLC-410-NG
- Yukon Gear and Axle: YG TLC-411
- USA Standard Gear: ZG TLC-411
Applications:
- 1968-1998 Toyota Land Cruiser
- 1968-1998 Toyota Land Cruiser
24549 Cross Reference
- Yukon Gear and Axle: 24549
- EXCEL from Richmond: TL95411
- Nitro Gear & Axle: TLC-410-NG
- Yukon Gear and Axle: YG TLC-411
- USA Standard Gear: ZG TLC-411
