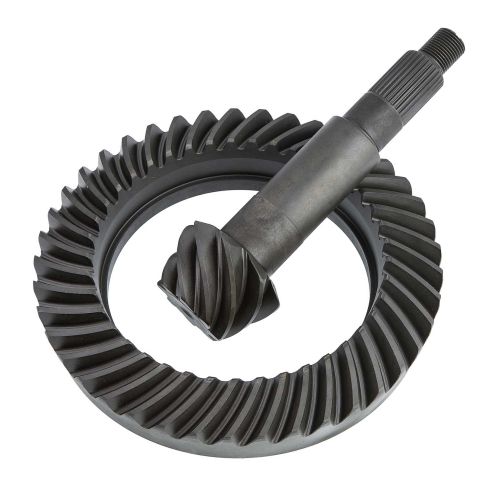

24607 Ratio For ()
Regular price
$ 525.99
Couldn't load pickup availability
Brand: Motive Gear

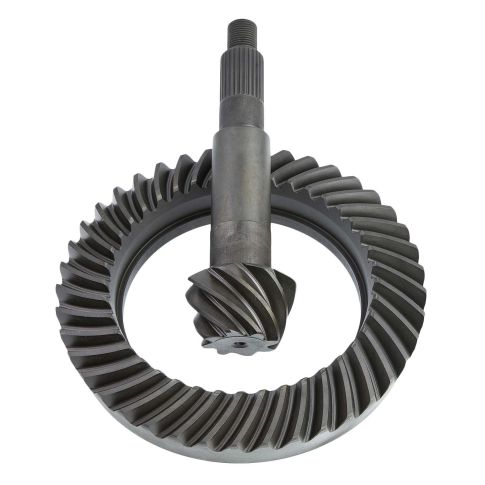

RP DANA 60 5.13 STANDARD THICK
UPC: 00698231415177
App/Model: Dana 60 Standard
Cover Bolt Quantity: 10
Differential Carrier Break: 4.10 Ratio and Lower
Differential Model: Dana 60 Standard
Gear Ratio: 5.13
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.626 Inch
Pinion Spline Count: 29
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 12
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 9.75 Inch
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front|Rear
Taxonomy D: 5.13
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
Applications:
RP DANA 60 5.13 STANDARD THICK
UPC: 00698231415177
App/Model: Dana 60 Standard
Cover Bolt Quantity: 10
Differential Carrier Break: 4.10 Ratio and Lower
Differential Model: Dana 60 Standard
Gear Ratio: 5.13
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.626 Inch
Pinion Spline Count: 29
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 12
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 9.75 Inch
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front|Rear
Taxonomy D: 5.13
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Yukon Gear and Axle: 24607
- Motive Gear: D60-513T
- Nitro Gear & Axle: D60-513T-NG
- EXCEL from Richmond: D60513T
- Yukon Gear and Axle: YG D60-513T
Applications:
- 1967-1972 Chevrolet C10 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1972 Chevrolet C10 Suburban
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1964-1972 Chevrolet C20 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1972 Chevrolet C20 Suburban
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2003-2013 Chevrolet Express 2500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2004-2010 Chevrolet Express 3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1991 Chevrolet G10
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1974 Chevrolet G10 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1991 Chevrolet G20
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1974 Chevrolet G20 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1991 Chevrolet G30
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1973-1974 Chevrolet G30 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1972 Chevrolet K10 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1970 Chevrolet K10 Suburban
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1965-1972 Chevrolet K20 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1977-1986 Chevrolet K30
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1988-1991 Chevrolet K3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2002-2005 Chevrolet Silverado 1500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2002-2003 Chevrolet Silverado 1500 HD
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2005-2005 Chevrolet Silverado 1500 HD
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1987-1988 Chevrolet V30
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1989-1991 Chevrolet V3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1980 Dodge B100
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1971-1974 Dodge B100 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1980 Dodge B200
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1971-1974 Dodge B200 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1981-1994 Dodge B250
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1995-1998 Dodge B2500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1980 Dodge B300
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1971-1974 Dodge B300 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1981-1994 Dodge B350
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1995-1998 Dodge B3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1970-1971 Dodge Challenger
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1974 Dodge Charger
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1971 Dodge Coronet
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1980 Dodge D200
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1959-1959 Dodge D200 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1970 Dodge D200 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1972-1974 Dodge D200 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1960-1967 Dodge D200 Series
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1981-1993 Dodge D250
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1983-1988 Dodge D350
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1990-1993 Dodge D350
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1977 Dodge Dart
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1970 Dodge Monaco
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1967 Dodge Polara
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1969-1973 Dodge Polara
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2004-2006 Dodge Ram 1500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1994-2002 Dodge Ram 2500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier; 1994-2002 Front Or Rear Dodge Ram Applications Requires Preload Shims Part# 1118
- 1996-2002 Dodge Ram 2500 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier; 1994-2002 Front Or Rear Dodge Ram Applications Requires Preload Shims Part# 1118
- 2003-2003 Dodge Ram 2500 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1994-2002 Dodge Ram 3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier; 1994-2002 Front Or Rear Dodge Ram Applications Requires Preload Shims Part# 1118
- 1996-2002 Dodge Ram 3500 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier; 1994-2002 Front Or Rear Dodge Ram Applications Requires Preload Shims Part# 1118
- 2003-2003 Dodge Ram 3500 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1980 Dodge W200
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1959-1959 Dodge W200 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1974 Dodge W200 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1960-1967 Dodge W200 Series
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1981-1993 Dodge W250
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1980 Dodge W300
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1974 Dodge W300 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1960-1967 Dodge W300 Series
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1981-1993 Dodge W350
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1969-1974 Ford E-200 Econoline
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2003-2014 Ford E-250
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1980-2002 Ford E-250 Econoline
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1980-1991 Ford E-250 Econoline Club Wagon
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1969-1974 Ford E-300 Econoline
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2003-2005 Ford E-350 Club Wagon
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-2000 Ford E-350 Econoline
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2007-2008 Ford E-350 Econoline
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1977-2002 Ford E-350 Econoline Club Wagon
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1999-2015 Ford E-350 Super Duty
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1986 Ford F-250
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1985 Ford F-350
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1972 GMC C15/C1500 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1972 GMC C15/C1500 Suburban
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1972 GMC C25/C2500 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1972 GMC C25/C2500 Suburban
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1978 GMC G25
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1973-1974 GMC G25/G2500 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1979-1991 GMC G2500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1975-1978 GMC G35
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1973-1974 GMC G35/G3500 Van
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1979-1991 GMC G3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1972 GMC K25/K2500 Pickup
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1972 GMC K25/K2500 Suburban
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1977-1978 GMC K35
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1979-1986 GMC K3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1988-1991 GMC K3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2003-2013 GMC Savana 2500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 2004-2010 GMC Savana 3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1987-1991 GMC V3500
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1974-1988 Jeep J20
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1970-1971 Plymouth Barracuda
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1967 Plymouth Belvedere
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1967 Plymouth Belvedere II
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1970-1971 Plymouth Cuda
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1972 Plymouth Fury
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1972-1972 Plymouth Gran Fury
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1967-1971 Plymouth GTX
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1968-1975 Plymouth Road Runner
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
- 1966-1967 Plymouth Satellite
- For Dana 60; 5.13 Ratio; Thick Ring Gear; Requires a 4.10 and Numerically Lower Ratio Carrier
24607 Cross Reference
- Yukon Gear and Axle: 24607
- Motive Gear: D60-513T
- Nitro Gear & Axle: D60-513T-NG
- EXCEL from Richmond: D60513T
- Yukon Gear and Axle: YG D60-513T
Returns Policy
A " Return Authorization Number " must be obtained before returning a product. Any returns without the Return Authorization Number will NOT be processed. Fleetsworld.com will not be responsible for unauthorized returns. Please send your return request to support@fleetsworld.com. You will receive an authorization number along with the return instructions via email.
Return Information
* Items must be returned within 30 days of the original invoice date.
* A 18 % restocking fee applies to all returned products.
* All parts must be in new condition and perfect condition and contain all components.
* Returns will not be accepted if the part was installed, modified , misused or in unsalable condition.
* The items must be in the original packaging.
* Some items are special orders and therefore are non-returnable.
* Fleetsworld.com is not responsible for refunds and/or return freight charges.
* All sales are final after 30 days.
* Unacceptable returns will be sent back to the customer on request at the customer's expense.
Returns Instruction
* Contact our support department at support@fleetsworld.com.
* Our support department will contact you by e-mail or phone within 24-72 hours (excluding weekends).
* Our support department will issue a return authorization number and provide further instructions to complete the return.
