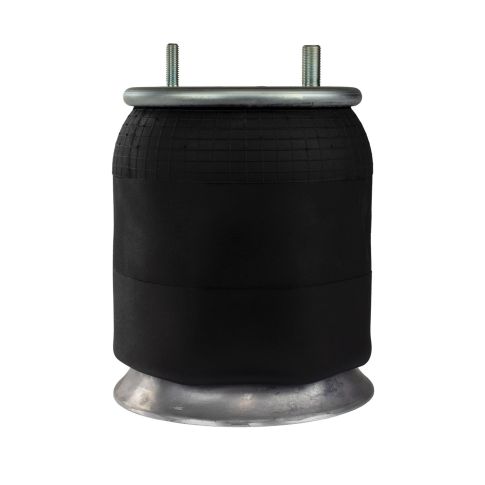

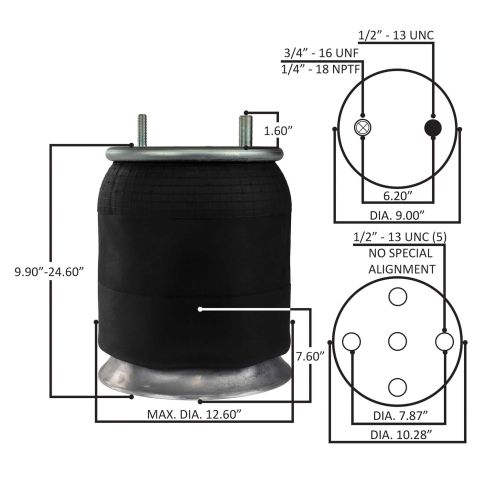

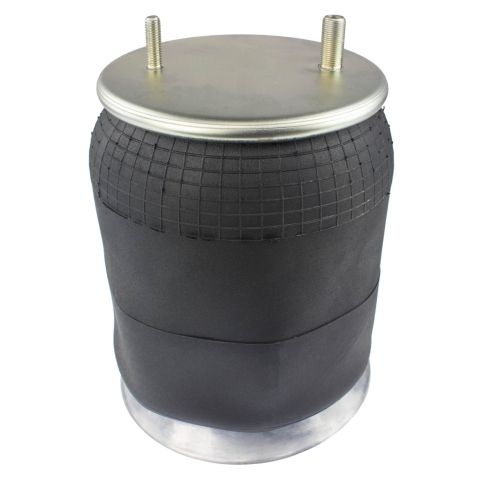

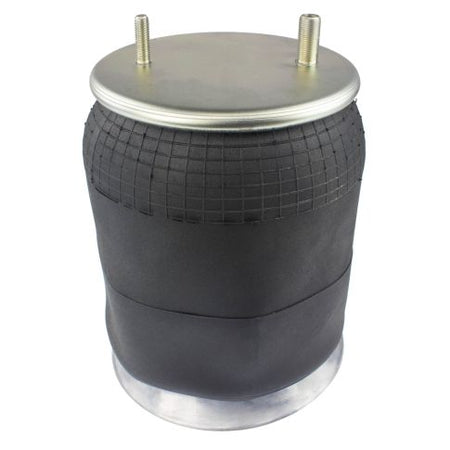

3130490 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING RL PB
Air Spring Type: Rolling Lobe
Base Plate Material: Aluminum
Bottom Plate Alignment: 45 Degrees
Bottom Plate Bolt Hole Quantity: 4
Bottom Plate Center to Center: 2.25 Inch
Bottom Plate Diameter: 10.3 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 17 Inch
Load Rating at 100 PSI: 7070 Pound
Load Rating at 80 PSI: 5640 Pound
Maximum Diameter: 10.12 Inch
Maximum Height: 25.6 Inch
Minimum Height: 9.7 Inch
Natural Frequency: 60 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Rolling Lobe
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 5.5 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Batco: 10-99101
- Ridewell Corp: 1003589101C
- Reyco Granning: 12883-01
- Reyco Granning: 1288301
- Goodyear: 1R12-113
- Volvo Truck: 3130490
- Dayton Parts: 352-9101
- Continental-ContiTech: 64279
- Volvo Truck: 85101149
- Continental-ContiTech: 9 10-19 P 315
- Holland: 90044201
- Holland: 90557008
- Holland: 90557009
- Holland: 90557082
- Firestone: 9101
- Automann: AB1DK23L-9101
- Watson & Chalin: AS-0040
- Triangle Air Springs: AS-8315
- Paccar Parts: AS91010
- Hendrickson: B3842
- Euclid: E-FS9101
- Meritor: FS9101
- BWP: M-3515
- Meritor: RFS9101
- Leland Brake & Wheel Parts: SC2038
- Torque: TR9101
- Firestone: W01-358-9101
- World American: WA01-9101
3130490 Cross Reference
- Batco: 10-99101
- Ridewell Corp: 1003589101C
- Reyco Granning: 12883-01
- Reyco Granning: 1288301
- Goodyear: 1R12-113
- Volvo Truck: 3130490
- Dayton Parts: 352-9101
- Continental-ContiTech: 64279
- Volvo Truck: 85101149
- Continental-ContiTech: 9 10-19 P 315
- Holland: 90044201
- Holland: 90557008
- Holland: 90557009
- Holland: 90557082
- Firestone: 9101
- Automann: AB1DK23L-9101
- Watson & Chalin: AS-0040
- Triangle Air Springs: AS-8315
- Paccar Parts: AS91010
- Hendrickson: B3842
- Euclid: E-FS9101
- Meritor: FS9101
- BWP: M-3515
- Meritor: RFS9101
- Leland Brake & Wheel Parts: SC2038
- Torque: TR9101
- Firestone: W01-358-9101
- World American: WA01-9101
