36084 Ratio For ()
Couldn't load pickup availability
RP EXCEL DANA 60 5.13 REV CUT
App/Model: Dana 60 Reverse
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cover Bolt Quantity: 10
Differential Carrier Break: 4.10 Ratio and Lower
Differential Model: Dana 60 Reverse
Gear Ratio: 5.13
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.626 Inch
Pinion Spline Count: 29
Ring Gear Bolt Quantity: 12
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 9.75 Inch
Ring Gear Rotation: Reverse
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front
Taxonomy D: 5.13

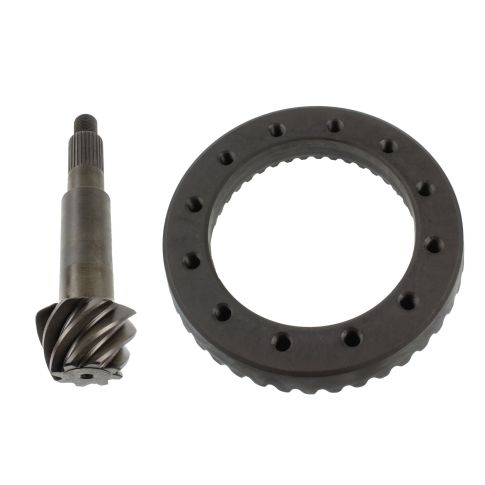

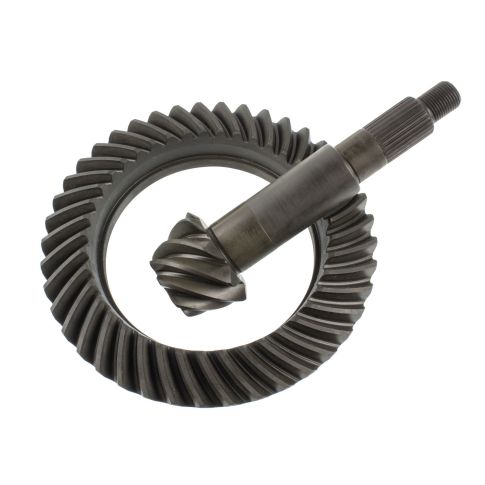

For Dana 60; 5.13 Ratio; Thick Ring Gear; Reverse Cut; Requires a 4.10 and Numerically Lower Ratio Carrier; 1999-2015 Applications Require Preload Shims Part# 1118
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- USA Standard Gear: 36084
- Motive Gear: D60-513XF
- USA Standard Gear: ZG D60R-513R-T
Applications:
- 1978-1979 Ford F-250
- 1999-2016 Ford F-250 Super Duty
- 1979-1997 Ford F-350
- 1999-2016 Ford F-350 Super Duty
- 1999-2016 Ford F-450 Super Duty
- 1999-2016 Ford F-550 Super Duty
36084 Cross Reference
- USA Standard Gear: 36084
- Motive Gear: D60-513XF
- USA Standard Gear: ZG D60R-513R-T
