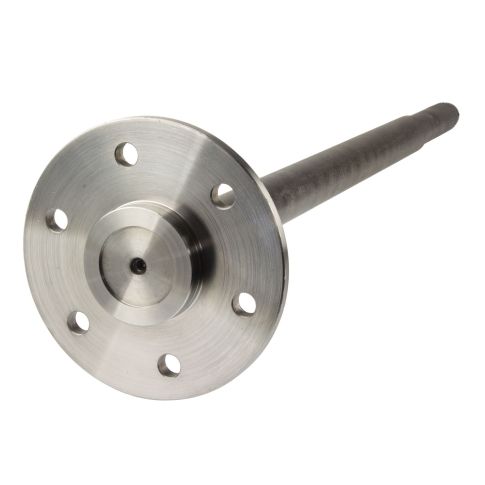

447-1610 Bolt Pattern Spline Drive Axle Shaft for
Couldn't load pickup availability
AXLE GM9.5" 33SPL 33.13" 6 LUG
UPC: 00698231077771
App/Model: GM 9.5
Differential Model: GM 9.5

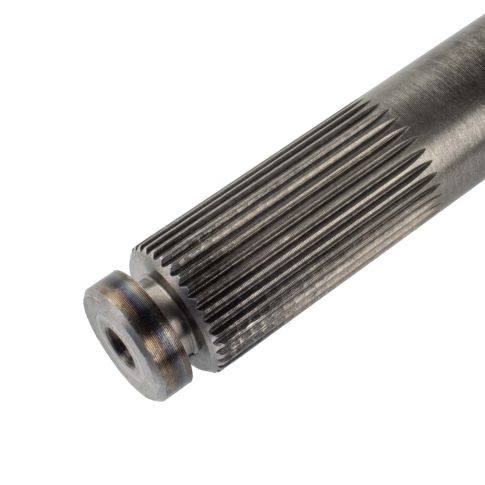

Inboard Spline Quantity: 33
Prop 65 Yes/No: No
Shaft Length: 33.125 Inch
Shaft Material: 1541 Manganese
Taxonomy A: LD Differential
Taxonomy B: Axle Shafts
Taxonomy C: Axles - Rear
Taxonomy D: Left|Right
Wheel Bolt Pattern Size: 6 x 5.5 Inch
For GM 9.5" (14 Bolt); 33.125" Overall Length; 6 x 5.5 Lug Pattern; 33 Spline
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Hollander: 447-1610
- EXCEL from Richmond: 92-25148
- Motive Gear: MG1610
- TEN Factory: MG27106
- Yukon Gear and Axle: YA G15521928
Applications:
- 1988-1999 Chevrolet K1500
- 1988-1999 Chevrolet K2500
- 1988-1999 GMC K1500
- 1988-1998 GMC K2500
447-1610 Cross Reference
- Hollander: 447-1610
- EXCEL from Richmond: 92-25148
- Motive Gear: MG1610
- TEN Factory: MG27106
- Yukon Gear and Axle: YA G15521928
