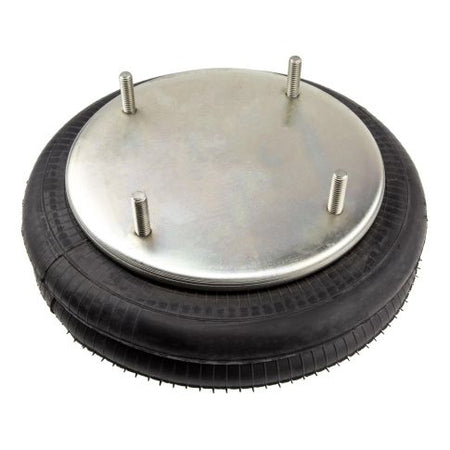

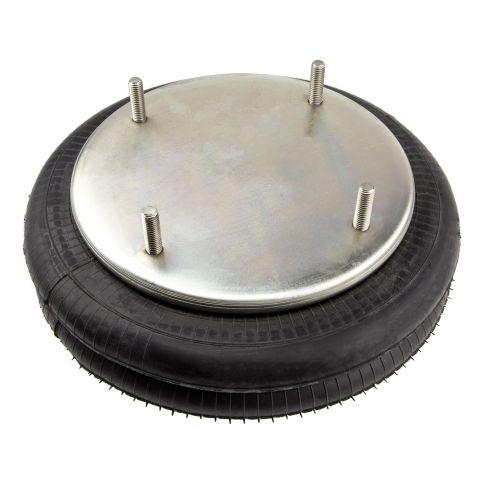

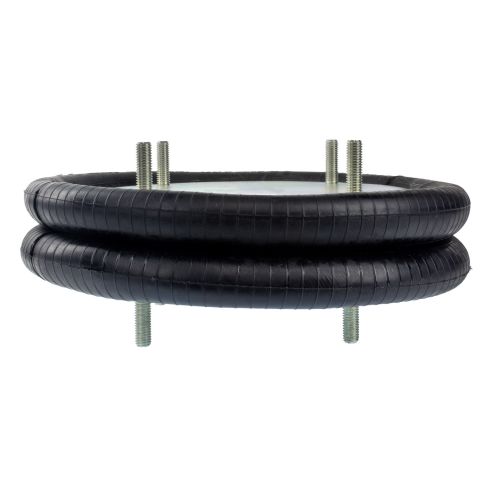

554800C1 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING DC SB

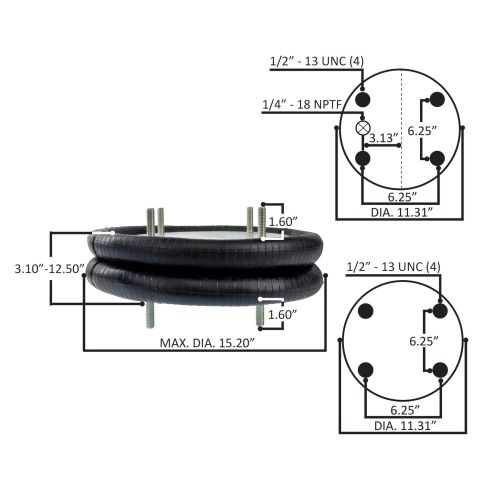

Air Spring Type: Double Convoluted
Base Plate Material: Aluminum
Bottom Plate Alignment: 45 Degrees
Bottom Plate Bolt Hole Quantity: 4
Bottom Plate Center to Center: 6.25 Inch
Bottom Plate Diameter: 11.31 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 9.8 Inch
Load Rating at 100 PSI: 8170 Pound
Load Rating at 80 PSI: 6530 Pound
Maximum Diameter: 14.5 Inch
Maximum Height: 12.2 Inch
Minimum Height: 3.12 Inch
Natural Frequency: 108 Hertz
Taxonomy A: Air Springs/Bags
Taxonomy B: Trailer
Taxonomy C: Double Convoluted
Top Plate Bolt Hole Quantity: 4
Top Plate Center to Center: 6.25 Inch
Top Plate Diameter: 11.31 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Batco: 10-97135
- Ridewell Corp: 1003587135C
- Goodyear: 2B14-360
- Volvo Truck: 3130501
- Dayton Parts: 354-7135
- Triangle Air Springs: 4311
- Navistar: 554800C1
- Silent Drive: 63641
- Silent Drive: 63644
- Tuthill Transfer: 6420
- Firestone: 7135
- Holland: 90557001
- Automann: ABSP2B34R-7135
- OE Aftermarket: AR-21-A
- Triangle Air Springs: AS-4311
- Binkley: B-12514-014
- Euclid: E-FS7135
- Continental-ContiTech: FD 530-22 311
- Continental-ContiTech: FD53022311
- Genuine Newstar: FIR-W01-358-7135
- Meritor: FS7135
- BWP: M-3502
- BWP: M-3520
- Meritor: RFS7135
- Hendrickson: S-13034
- Genuine Newstar: S-34511
- Genuine Newstar: S34511
- Leland Brake & Wheel Parts: SC2013
- Torque: TR7135
- Firestone: W01-358-7135
554800C1 Cross Reference
- Batco: 10-97135
- Ridewell Corp: 1003587135C
- Goodyear: 2B14-360
- Volvo Truck: 3130501
- Dayton Parts: 354-7135
- Triangle Air Springs: 4311
- Navistar: 554800C1
- Silent Drive: 63641
- Silent Drive: 63644
- Tuthill Transfer: 6420
- Firestone: 7135
- Holland: 90557001
- Automann: ABSP2B34R-7135
- Triangle Air Springs: AS-4311
- Binkley: B-12514-014
- Euclid: E-FS7135
- Continental-ContiTech: FD 530-22 311
- Continental-ContiTech: FD53022311
- Genuine Newstar: FIR-W01-358-7135
- Meritor: FS7135
- BWP: M-3502
- BWP: M-3520
- Meritor: RFS7135
- Hendrickson: S-13034
- Genuine Newstar: S-34511
- Genuine Newstar: S34511
- Leland Brake & Wheel Parts: SC2013
- Torque: TR7135
- Firestone: W01-358-7135
