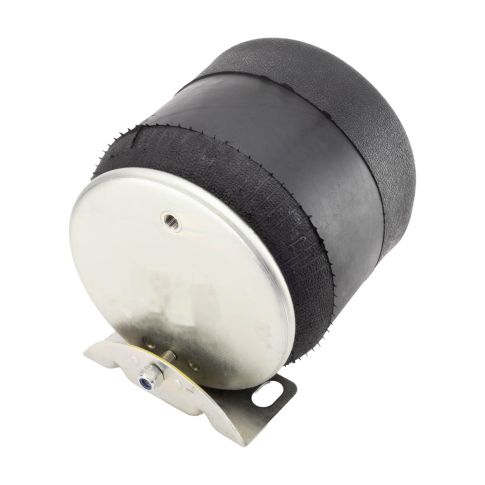

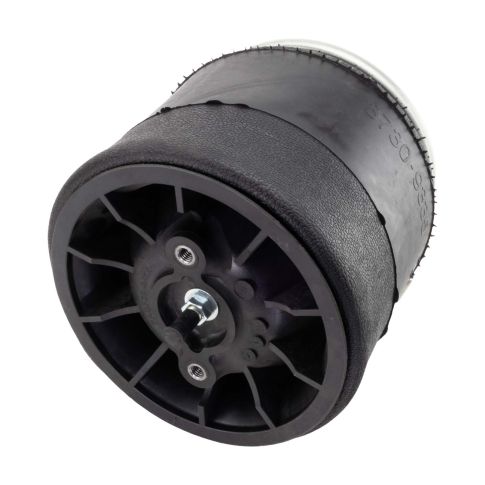

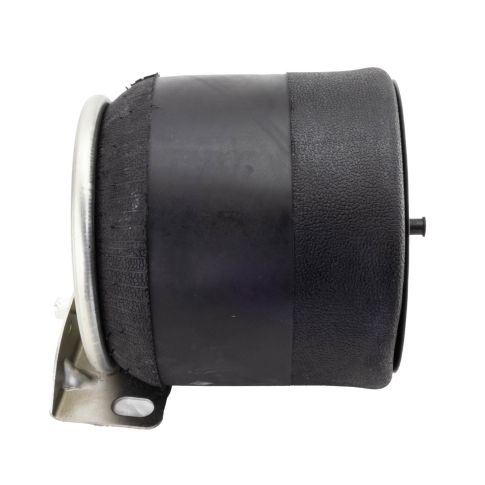

56917-001 Air Suspension Spring
Couldn't load pickup availability
AIR SPRING
Air Spring Type: Rolling Lobe
Base Plate Material: Plastic
Bottom Plate Bolt Hole Quantity: 1
Bottom Plate Diameter: 9.53 Inch
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Design Height: 10 Inch
Load Rating at 100 PSI: 7000 Pound
Load Rating at 80 PSI: 5500 Pound
Maximum Diameter: 10.12 Inch
Maximum Height: 15.8 Inch
Minimum Height: 6 Inch
Natural Frequency: 69 Hertz
Taxonomy A: Air Springs/Bags
Top Plate Bolt Hole Quantity: 2
Top Plate Center to Center: 6.2 Inch
Top Plate Diameter: 9 Inch
Warranty Period: 1 Year or 100,000 Miles
Replaces:
- Goodyear: 1R12-620
- Automann: 566.CT69644
- Hendrickson: 56917-001
- Hendrickson: 56917-002
- Hendrickson: 56917-002L
- Continental-ContiTech: 69644
- Triangle Air Springs: 8465
- Continental-ContiTech: 910-14P465
- Dayton Parts: 9284
- Dayton Parts: 9335
- Automann: AB1DK23I-9335
- Triangle Air Springs: AS-8465
- Dayton Parts: AS9284
- Dayton Parts: AS9335
- Euclid: E-FS9335
- Dayton Parts: FS9284
- Dayton Parts: FS9335
- Hendrickson: H56917002
- Dayton Parts: W01-358-9284
- Dayton Parts: W01-358-9335
56917-001 Cross Reference
- Goodyear: 1R12-620
- Automann: 566.CT69644
- Hendrickson: 56917-001
- Hendrickson: 56917-002
- Hendrickson: 56917-002L
- Continental-ContiTech: 69644
- Triangle Air Springs: 8465
- Continental-ContiTech: 910-14P465
- Dayton Parts: 9284
- Dayton Parts: 9335
- Automann: AB1DK23I-9335
- Triangle Air Springs: AS-8465
- Dayton Parts: AS9284
- Dayton Parts: AS9335
- Euclid: E-FS9335
- Dayton Parts: FS9284
- Dayton Parts: FS9335
- Hendrickson: H56917002
- Firestone: W01-358-9284
- Firestone: W01-358-9335
