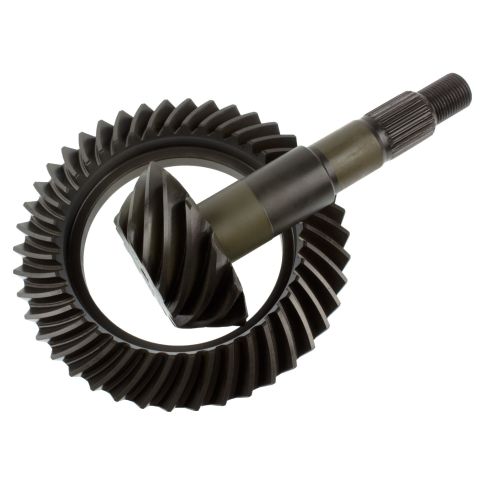

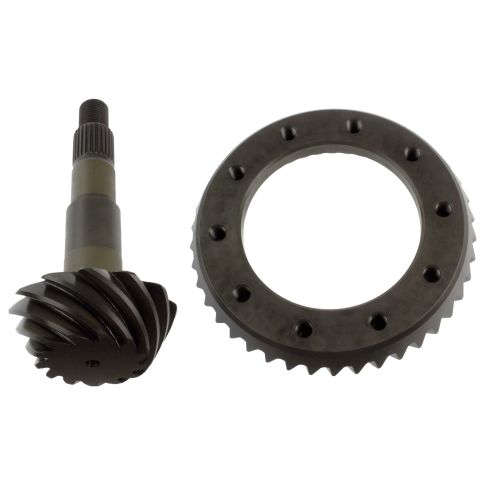

697-714 Ratio For ()

In stock
SKU: GM7.5-323
$ 450.99

This item must be purchased in a quantity of 1 .

Brand: Motive Gear
RP GM 7.5" 7.625" 3.23 MG
UPC: 00698231020746
App/Model: GM 7.5|GM 7.6 IFS|GM 7.625
Cover Bolt Quantity: 10
Differential Carrier Break: 3.23 Ratio and Higher
Differential Model: GM 7.5|GM 7.6 IFS|GM 7.625
Gear Ratio: 3.23
Pinion Gear Tooth Quantity: 13
Pinion Shaft Diameter: 1.438 Inch
Pinion Spline Count: 27
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.5 Inch
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 42
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front|Rear
Taxonomy D: 3.23

Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions

Warranty Period: 1 Year or 50,000 Miles

Replaces:

  • General Motors: 12471192
  • General Motors: 14085348
  • General Motors: 14089177
  • Yukon Gear and Axle: 24477
  • General Motors: 26019043
  • General Motors: 26024274
  • General Motors: 26046641
  • General Motors: 26059954
  • Richmond Gear: 49-0044-1
  • Dorman: 697-714
  • SVL: DS2020639
  • Motive Gear: G875323
  • Nitro Gear & Axle: GM7.5-323-NG
  • EXCEL from Richmond: GM75323
  • Richmond Gear: SGM7502
  • Yukon Gear and Axle: YG GM7.5-323

Applications:

  • 1973-1975 Buick Apollo
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Buick Electra
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1989 Buick Electra
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Buick Estate Wagon
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1983 Buick Estate Wagon
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1989 Buick LeSabre
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Buick Regal
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1987 Buick Regal
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1991-1991 Buick Roadmaster
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Buick Roadmaster
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1996 Buick Roadmaster
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1975-1979 Buick Skylark
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1985-1991 Chevrolet Astro
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Chevrolet Astro
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 Chevrolet Astro
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2005 Chevrolet Astro
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1995-1999 Chevrolet Blazer
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2005 Chevrolet Blazer
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1977-1981 Chevrolet Camaro
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1991 Chevrolet Camaro
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Chevrolet Camaro
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 Chevrolet Camaro
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2002 Chevrolet Camaro
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1978-1981 Chevrolet Caprice
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1991 Chevrolet Caprice
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Chevrolet Caprice
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1996 Chevrolet Caprice
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Chevrolet El Camino
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1987 Chevrolet El Camino
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1985 Chevrolet Impala
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1994-1996 Chevrolet Impala
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Chevrolet Malibu
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1983 Chevrolet Malibu
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Chevrolet Monte Carlo
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1988 Chevrolet Monte Carlo
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1977-1979 Chevrolet Nova
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1991 Chevrolet S10
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Chevrolet S10
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 Chevrolet S10
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1983-1991 Chevrolet S10 Blazer
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Chevrolet S10 Blazer
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1994 Chevrolet S10 Blazer
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1987 GMC Caballero
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 GMC Jimmy
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 GMC Jimmy
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2005 GMC Jimmy
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1982-1990 GMC S15
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1983-1991 GMC S15 Jimmy
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1985-1991 GMC Safari
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 GMC Safari
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 GMC Safari
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1991-1991 GMC Sonoma
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 GMC Sonoma
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 GMC Sonoma
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2004 GMC Sonoma
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1991-1991 GMC Syclone
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1996-1998 Isuzu Hombre
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1993-1999 Isuzu Rodeo
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2002 Isuzu Rodeo
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1982-1984 Oldsmobile 98
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1991-1991 Oldsmobile Bravada
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Oldsmobile Bravada
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1994 Oldsmobile Bravada
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1996-1999 Oldsmobile Bravada
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2001 Oldsmobile Bravada
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1978-1981 Oldsmobile Custom Cruiser
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1991 Oldsmobile Custom Cruiser
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Oldsmobile Cutlass
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1985-1986 Oldsmobile Cutlass
    • 26 Spline; w/3.23 Axle Ratio
  • 1987-1987 Oldsmobile Cutlass
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Oldsmobile Cutlass Calais
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1984 Oldsmobile Cutlass Calais
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1987 Oldsmobile Cutlass Ciera
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1980-1981 Oldsmobile Cutlass Cruiser
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1983 Oldsmobile Cutlass Cruiser
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1987-1987 Oldsmobile Cutlass Cruiser
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1980 Oldsmobile Cutlass Salon
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1985-1987 Oldsmobile Cutlass Salon
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Oldsmobile Cutlass Supreme
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1988 Oldsmobile Cutlass Supreme
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1985 Oldsmobile Delta 88
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1976-1979 Oldsmobile Omega
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Pontiac Bonneville
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1986 Pontiac Bonneville
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Pontiac Catalina
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1977-1981 Pontiac Firebird
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1991 Pontiac Firebird
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1992-1992 Pontiac Firebird
    • 26 Spline; 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear
  • 1993-1999 Pontiac Firebird
    • 28 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 2000-2002 Pontiac Firebird
    • 7.5 In. Ring Gear; 7.625 In. Ring Gear; Carrier Break 3.08/3.23; w/3.23 Axle Ratio
  • 1978-1980 Pontiac Grand Am
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1978-1981 Pontiac Grand Prix
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio
  • 1982-1987 Pontiac Grand Prix
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1983-1986 Pontiac Parisienne
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1987-1989 Pontiac Safari
    • 26 Spline; 7.5 In. Ring Gear; 7.625 In. Ring Gear; w/3.23 Axle Ratio
  • 1972-1976 Pontiac Ventura
    • 7.5 In. Ring Gear; w/3.23 Axle Ratio

697-714 Cross Reference

  • General Motors: 12471192
  • General Motors: 14085348
  • General Motors: 14089177
  • Yukon Gear and Axle: 24477
  • General Motors: 26019043
  • General Motors: 26024274
  • General Motors: 26046641
  • General Motors: 26059954
  • Richmond Gear: 49-0044-1
  • Dorman: 697-714
  • SVL: DS2020639
  • Motive Gear: G875323
  • Nitro Gear & Axle: GM7.5-323-NG
  • EXCEL from Richmond: GM75323
  • Richmond Gear: SGM7502
  • Yukon Gear and Axle: YG GM7.5-323

Returns Policy

A " Return Authorization Number " must be obtained before returning a product. Any returns without the Return Authorization Number will NOT be processed. Fleetsworld.com will not be responsible for unauthorized returns. Please send your return request to support@fleetsworld.com. You will receive an authorization number along with the return instructions via email.

Return Information

* Items must be returned within 30 days of the original invoice date.

* A 18 % restocking fee applies to all returned products.

* All parts must be in new condition and perfect condition and contain all components.

* Returns will not be accepted if the part was installed, modified , misused or in unsalable condition.

* The items must be in the original packaging.

* Some items are special orders and therefore are non-returnable.

* Fleetsworld.com is not responsible for refunds and/or return freight charges.

* All sales are final after 30 days.

* Unacceptable returns will be sent back to the customer on request at the customer's expense.

Returns Instruction

* Contact our support department at support@fleetsworld.com.

* Our support department will contact you by e-mail or phone within 24-72 hours (excluding weekends).

* Our support department will issue a return authorization number and provide further instructions to complete the return.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
