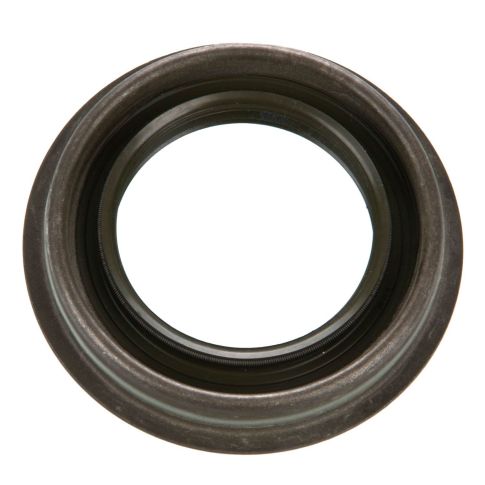

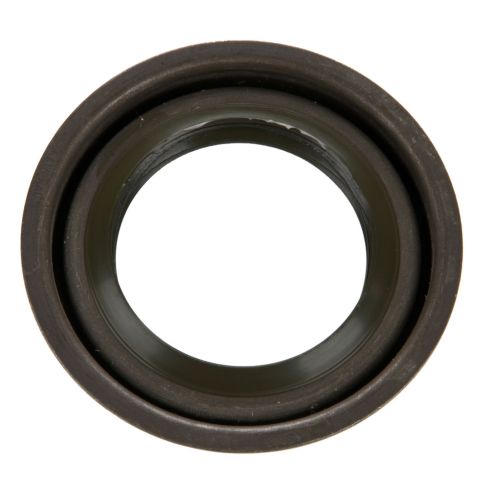

714675 Differential Pinion Seal
Couldn't load pickup availability
PINION SEAL OD 2.74" ID 1.844"
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cross Section Height: 12.7 Millimeter
Cross Section Height: .5 Inch
Differential Model: Dana 35|Dana 44
Fitted Width: .323 Inch
Fitted Width: 8.2 Millimeter
Flange Diameter: 3.09 Inch
Flange Diameter: 78.5 Millimeter
Height: .5 Inch
Housing Bore: 69.8 Millimeter
Housing Bore: 2.75 Inch
Material: Rubber
Outside Diameter: 78.5 Millimeter
Overall Width: 12.7 Millimeter
Redicoat: Yes
Shaft Diameter: 46.84 Millimeter
Shaft Diameter: 1.84 Inch
Taxonomy A: Bearings and Seals|LD Differential
Taxonomy B: Seals
Taxonomy C: Pinion Seals
Thickness: .515 Inch
Width On Shaft: 8.2 Millimeter
Width On Shaft: .323 Inch
For AMC 20, Dana Super 30, 35
Replaces:
- OE Aftermarket: 42103
- Spicer: 714675
Applications:
- 1968-1970 American Motors AMX
- 1978-1983 American Motors Concord
- 1980-1987 American Motors Eagle
- 1970-1977 American Motors Hornet
- 1968-1974 American Motors Javelin
- 1971-1978 American Motors Matador
- 1975-1980 American Motors Pacer
- 1990-1997 Ford Aerostar
- 1991-1996 Ford Explorer
- 2001-2013 Ford Explorer
- 1990-1997 Ford Ranger
- 2001-2005 Ford Ranger
- 2002-2004 Hummer H1
- 2006-2006 Hummer H1
- 1984-2001 Jeep Cherokee
- 1976-1983 Jeep CJ5
- 1976-1986 Jeep CJ7
- 1986-1992 Jeep Comanche
- 1993-2004 Jeep Grand Cherokee
- 1993-1993 Jeep Grand Wagoneer
- 1976-1986 Jeep J10
- 2002-2003 Jeep Liberty
- 1981-1985 Jeep Scrambler
- 1997-2006 Jeep TJ
- 1979-1986 Jeep Wagoneer
- 1987-1995 Jeep Wrangler
- 1997-2007 Jeep Wrangler
- 2003-2005 Lincoln Aviator
- 1994-1996 Mazda B3000
- 1994-1997 Mazda B4000
- 1997-1997 Mercury Mountaineer
- 2002-2010 Mercury Mountaineer
714675 Cross Reference
- OE Aftermarket: 42103
- Spicer: 714675
