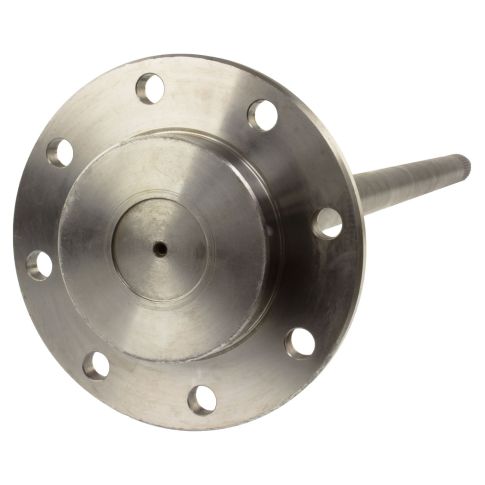

84489-4 Bolt Pattern Spline Drive Axle Shaft for
Couldn't load pickup availability
AXLE DANA 60 33SPL 34.84" 8LUG
UPC: 00698231732014
App/Model: GM 9.5
Differential Model: GM 9.5

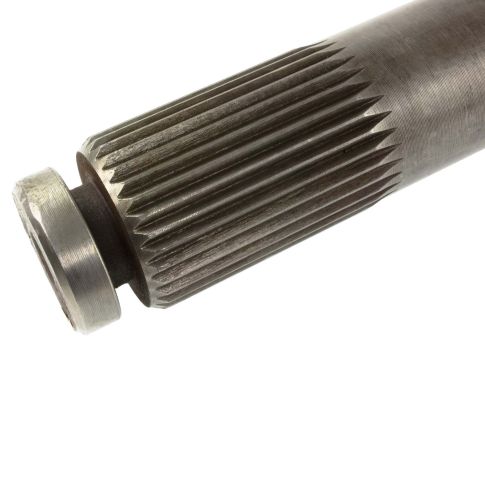

Inboard Spline Quantity: 33
Prop 65 Yes/No: No
Shaft Length: 34.84 Inch
Shaft Material: 1541 Manganese
Taxonomy A: LD Differential
Taxonomy B: Axle Shafts
Taxonomy C: Axles - Rear
Taxonomy D: Left|Right
Wheel Bolt Pattern Size: 8 x 6.5 Inch
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Hollander: 447-2908L
- Dorman: 630-151
- Spicer: 84489-4
- General Motors: 88982529
- EXCEL from Richmond: 92-25147
- USA Standard Gear: ZA G88982528
Applications:
- 2004-2004 Chevrolet Express 2500
- 8,500 Lb. GVW; 8,600 Lb. GVW; 9.75 In. Ring Gear; Axle Codes: AS6, AS7, AS8, AS9, EW2, EW3, EW4, EW5, FM3, FM4, FM5, FM6, HY6, HY7, HZ9, or JA5; wo/Active Brake Control
- 2004-2004 Chevrolet Express 2500
- 8,500 Lb. GVW; 9.75 In. Ring Gear; wo/Active Brake Control
- 2005-2009 Chevrolet Express 2500
- 8,600 Lb. GVW; 9.75 In. Ring Gear; wo/Active Brake Control
- 2005-2008 Chevrolet Express 3500
- 9.75 In. Ring Gear; wo/Active Brake Control
- 2009-2009 Chevrolet Express 3500
- 8,600 Lb. GVW; 9.75 In. Ring Gear; wo/Active Brake Control
- 2004-2004 GMC Savana 2500
- 8,500 Lb. GVW; 8,600 Lb. GVW; 9.75 In. Ring Gear; Axle Codes: AS6, AS7, AS8, AS9, EW2, EW3, EW4, EW5, FM3, FM4, FM5, FM6, HY6, HY7, HZ9, or JA5; wo/Active Brake Control
- 2005-2009 GMC Savana 2500
- 8,600 Lb. GVW; 9.75 In. Ring Gear; wo/Active Brake Control
- 2005-2008 GMC Savana 3500
- 9.75 In. Ring Gear; wo/Active Brake Control
- 2009-2009 GMC Savana 3500
- 8,600 Lb. GVW; 9.75 In. Ring Gear; wo/Active Brake Control
84489-4 Cross Reference
- Hollander: 447-2908L
- Dorman: 630-151
- Spicer: 84489-4
- General Motors: 88982529
- EXCEL from Richmond: 92-25147
- USA Standard Gear: ZA G88982528
