GPJKNONRUB-4.56 Ratio For ()
Couldn't load pickup availability
JK NON-RUB DANA 30F/44R 4.56
UPC: 00698231942949
App/Model: Dana 30 JK Reverse|Dana 44 JK
Cover Bolt Quantity: 10
Differential Carrier Break: Front Open Carrier 3.73 Ratio and Higher (D30-456RJK)
Differential Model: Dana 30 JK Reverse|Dana 44 JK
Gear Ratio: 4.56
Pinion Gear Tooth Quantity: 9
Pinion Shaft Diameter: 1.376 Inch
Pinion Spline Count: 24
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.12 Front (D30-456RJK)|8.5 Rear (D44-456JK) Inch
Ring Gear Rotation: Reverse Front (D44-456RJK)|Standard Rear (D44-456JK)
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.56

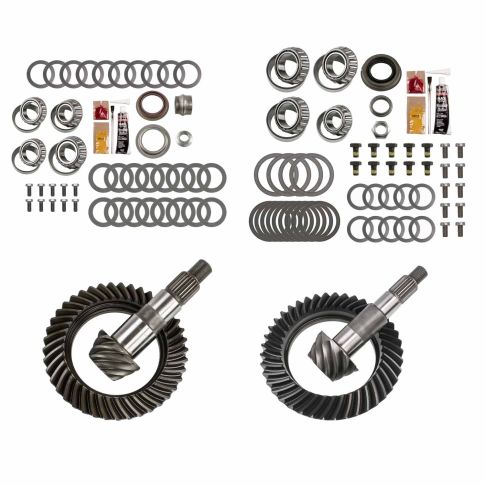

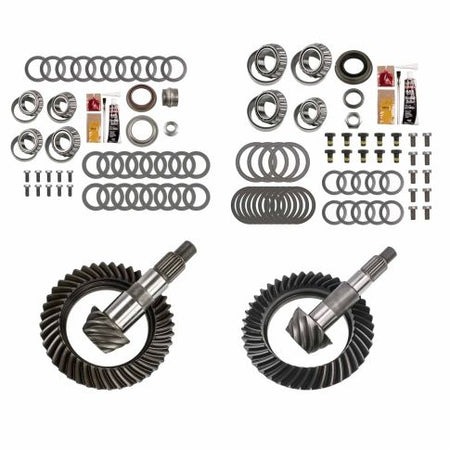

For Dana 30 JK Front and Dana 44 JK Rear - Ring and Pinions Including Timken Bearing Kits; For JK; 4.56 Ratio; Requires 3.73 and Higher Carrier; If Currently Using A 3.21 Ratio You Will Need To Purchase A New Front Carrier
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Nitro Gear & Axle: GPJKNONRUB-4.56
- Revolution Gear & Axle: REV-JK-NON-456
- Yukon Gear and Axle: YGK012
Applications:
- 2007-2018 Jeep Wrangler
GPJKNONRUB-4.56 Cross Reference
- Nitro Gear & Axle: GPJKNONRUB-4.56
- Revolution Gear & Axle: REV-JK-NON-456
- Yukon Gear and Axle: YGK012
