GPTJ35-4.10 Ratio For ()
Couldn't load pickup availability
TJ NON-RUB DANA 30F/35R 4.10
UPC: 00698231959046
App/Model: Dana 30 TJ|Dana 35
Cover Bolt Quantity: 10
Differential Carrier Break: 3.73 Ratio and Higher Front (D30-410TJ)|3.54 Ratio and Higher Rear (D35-411)
Differential Model: Dana 30 TJ|Dana 35
Gear Ratio: 4.10|4.11
Pinion Gear Tooth Quantity: 10 Front (D30-410TJ)|9 Rear (D35-411)
Pinion Shaft Diameter: 1.376 Inch
Pinion Spline Count: 26
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10 Front (D30-410TJ)|8 Rear (D35-411)
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.125 Front (D30-410TJ)|7.5 Rear (D35-411) Inch
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 41 Front (D30-410TJ)|37 Rear (D35-411)
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.10

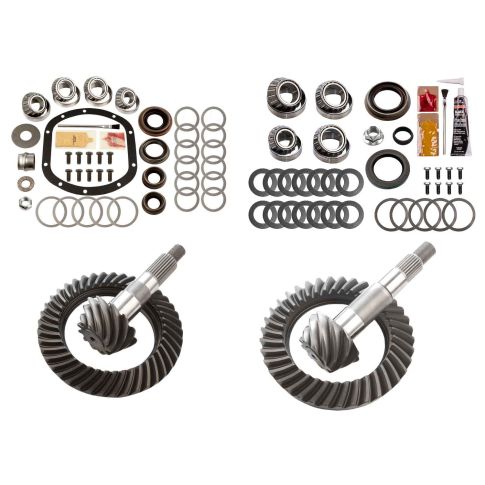

For Dana 30 Front and Dana 35 Rear - Ring and Pinions Including Timken Bearing Kits; 4.10 Ratio; Requires 3.73 and Higher Front Carrier; Requires 3.54 and Higher Rear Carrier; If Currently Using A 3.54 Ratio You Will Need To Purchase A New Front Carrier; If Currently Using A 3.07 Ratio You Will Need to Purchase a New Front and Rear Carrier
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Nitro Gear & Axle: GPTJ35-4.10
- Revolution Gear & Axle: REV-TJ-D35-410
Applications:
- 1997-2006 Jeep TJ
- 1997-2006 Jeep Wrangler
GPTJ35-4.10 Cross Reference
- Nitro Gear & Axle: GPTJ35-4.10
- Revolution Gear & Axle: REV-TJ-D35-410
