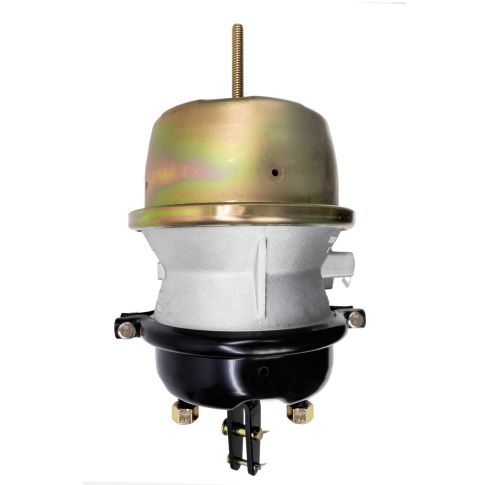

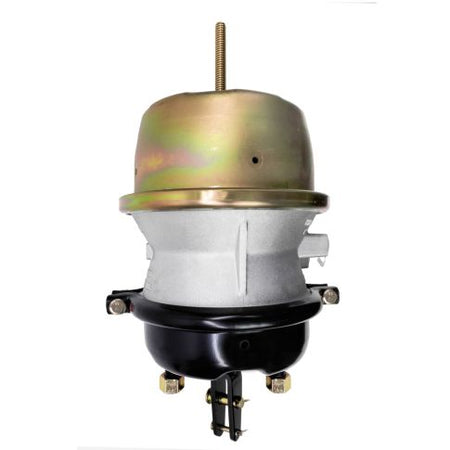

HAR-GC3036LCW BRK CHAMBER - T30/36 LS
Couldn't load pickup availability
DOUBLE DIAPHRAGM S.B 3036
UPC: 00643553508168
Air Port Position: 90 Degrees
Air Port Thread Diameter: 3/8-18 NPTF
Bolt Grade: 5
Bracket to End of Spring Housing Length: 10.6 Inch
Clevis: Welded
Clevis Pin Length: 2.25 Inch
Diaphragm Diameter: 3/8-18 NPTF Inch
Finish: Powder Coated
Freight Class: 70
Housing Material: 9 Gauge Steel\n
Maximum Pressure: 150 PSI Pounds per Square In
Piggyback Length: 8" Inch
Push Rod Diameter: 5/8-18 UNF\n Inch
Push Rod Length: 1 Inch
Series: GoldSeal
Service Chamber Size: 30/36
Service Clampband Position: 0°
Service Clampband Size: : 10.2" Inch
Spring Housing Flange Size: 9.1" Inch
Stroke Length: 3 Inch
Stud Distance: 4.75 Inch
Stud Length: 1.5 Inch
Stud Type: 5/8-11 UNC Inch
Taxonomy A: Brake Components
Taxonomy C: Air Chambers
Taxonomy D: Springbrake Chambers
Taxonomy E: Type 30/36
Type: Brake Chamber Type 30/36
Replaces:
- Haldex: GC3036LCW
- Genuine Newstar: HAR-GC3036LCW
- Genuine Newstar: S-37141
- Genuine Newstar: S37141
HAR-GC3036LCW Cross Reference
- Genuine Newstar: HAR-GC3036LCW
- Genuine Newstar: S-37141
- Genuine Newstar: S37141
