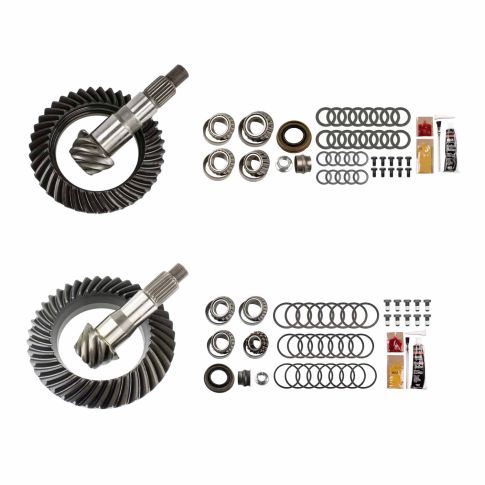

MGK-142 Ratio For ()
Couldn't load pickup availability
JL NON-RUB 18+ D30F/D35R 4.88
UPC: 00698231843833
App/Model: Dana AdvanTEK M186|Dana AdvanTEK M200|Dana 30 JL Reverse|Dana 35 JL
Cover Bolt Quantity: 10 Front (D30-488RJK)|12 Rear (D35-488JL)
Differential Carrier Break: 3.73 Ratio and Higher Front (D30-488RJK)
Differential Model: Dana AdvanTEK M186|Dana AdvanTEK M200|Dana 30 JL Reverse|Dana 35 JL
Gear Ratio: 4.88
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.375 Front (D30-488RJK)|1.63 Rear (D35-488JL) Inch
Pinion Spline Count: 24
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.125 Front (D30-488RJK)|7.88 Rear (D35-488JL) Inch
Ring Gear Rotation: Reverse Front (D30-488RJK)|Standard Rear (D35-488JL)
Ring Gear Tooth Quantity: 39
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.88
For Dana 30 Front and Dana 35 JL Rear; 4.88 Ratio
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Applications:
- 2018-2023 Jeep Wrangler
MGK-142 Cross Reference
