REV-F350-538-K Ratio For ()
Couldn't load pickup availability
F350 1993-98 D60XF/F10.25 5.38
UPC: 00698231618707
App/Model: Dana 60 Reverse|Ford 10.25
Cover Bolt Quantity: 10 Front (D60-538XF)|12 Rear (F10.25-538L)
Differential Carrier Break: 4.10 Ratio and Lower
Differential Model: Dana 60 Reverse|Ford 10.25
Gear Ratio: 5.38
Pinion Gear Tooth Quantity: 8
Pinion Shaft Diameter: 1.626 Front (D60-538XF)|1.94 Rear (F10.25-538L) Inch
Pinion Spline Count: 29 Front (D60-538XF)|31 Rear (F10.25-538L)
Prop 65 Yes/No: No
Ring Gear Bolt Quantity: 12
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 9.75 Front (D60-538XF)|10.25 Rear (F10.25-538L) Inch
Ring Gear Rotation: Reverse Front (D60-538XF)|Standard Rear (F10.25-538L)
Ring Gear Tooth Quantity: 43
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 5.38

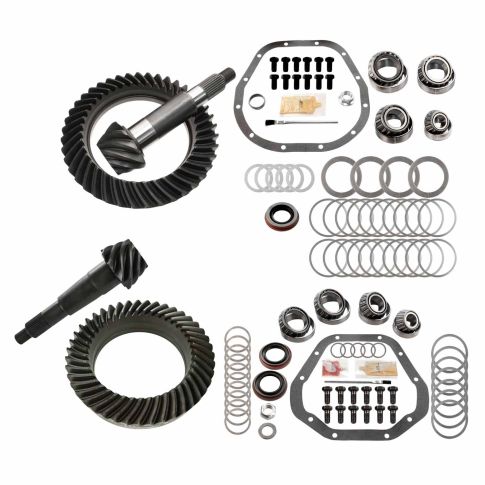

For Dana 60 and Ford 10.25" - Ring and Pinions Including Timken Bearing Kits; 5.38 Ratio; Thick Front Ring Gear; Requires 4.10 and Lower Front Carrier
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Revolution Gear & Axle: REV-F350-538-K
Applications:
- 1993-1997 Ford F-350
REV-F350-538-K Cross Reference
- Revolution Gear & Axle: REV-F350-538-K
