REV-TJ-D44-456-K Ratio For ()
Couldn't load pickup availability
TJ NON-RUB DANA 30F/44R 4.56
App/Model: Dana 30 TJ|Dana 44 Standard
California Proposition 65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cover Bolt Quantity: 10
Differential Model: Dana 30 TJ|Dana 44 Standard
Gear Ratio: 4.56
Pinion Gear Tooth Quantity: 9
Pinion Shaft Diameter: 1.376 Inch
Pinion Spline Count: 26
Ring Gear Bolt Quantity: 10
Ring Gear Material: 8620 Steel
Ring Gear Outside Diameter: 7.125 Front (D30456TJ)|8.5 Rear (D44456) Inch
Ring Gear Rotation: Standard
Ring Gear Tooth Quantity: 41
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.56

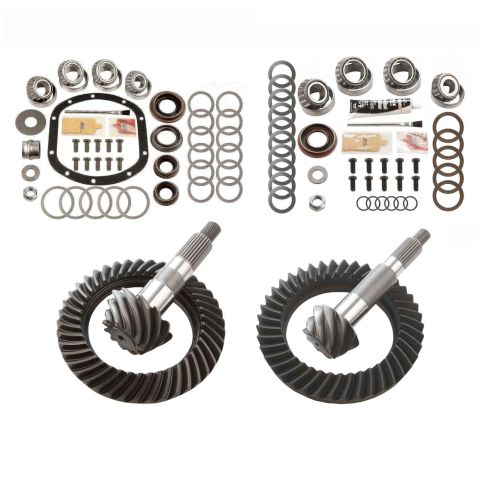

For Dana 30 Front and Dana 44 Rear Non-Rubicon - Ring and Pinions Including Timken Bearing Kits; 4.56 Ratio; Requires 3.73 and Higher Front Carrier; Requires 3.92 and Higher Rear Carrier; If Currently Using A 3.73 Ratio You Will Need To Purchase A New Rear Carrier; If Currently Using A 3.54 Or 3.07 Ratio You Will Need To Purchase A New Front And Rear Carrier
Installation Instructions
Warranty Period: 1 Year or 50,000 Miles
Replaces:
- Revolution Gear & Axle: REV-TJ-D44-456-K
- Revolution Gear & Axle: REV-TJ-D44-456-LATE-K
Applications:
- 1997-2006 Jeep TJ
- 1997-2006 Jeep Wrangler
REV-TJ-D44-456-K Cross Reference
- Revolution Gear & Axle: REV-TJ-D44-456-K
- Revolution Gear & Axle: REV-TJ-D44-456-LATE-K
