When it comes to replacing or customizing your truck drive shaft, getting the length right is mission-critical. An improperly sized driveshaft can cause vibration, premature wear, or even catastrophic failure. Whether you're swapping in a new transmission, adjusting ride height, or ordering a custom driveshaft, this guide will show you exactly how to measure driveshaft length the right way.
What Is a Driveshaft and Why Does Length Matter

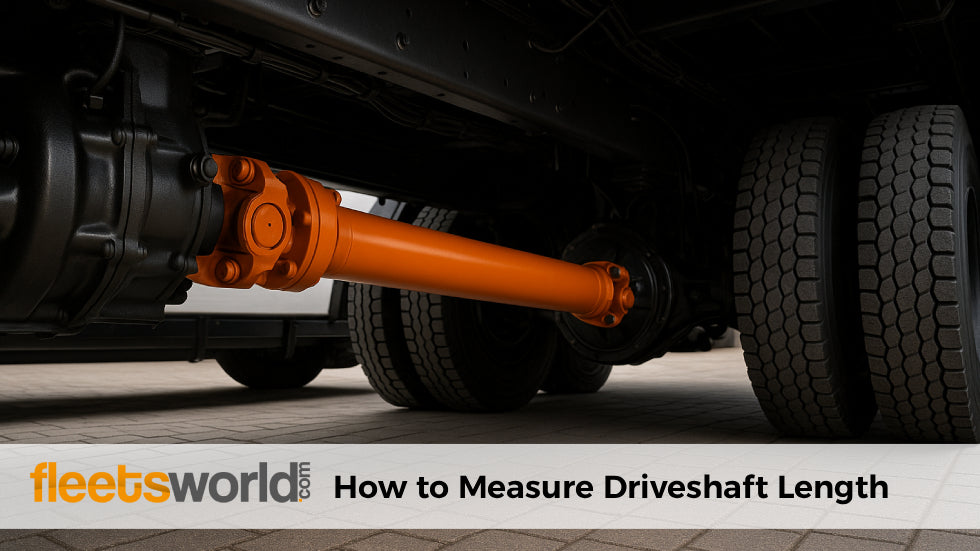

First, it’s important to understand what a truck driveshaft is. A driveshaft isn’t just a spinning tube; it’s the link between your transmission and rear axle. If it’s too short, it can pull free during suspension travel. Too long? You risk bottoming out the slip yoke or hammering your output shaft. And if you’ve made changes, such as a new rear end, transmission, lift kit, or wheelbase mods, then your original shaft length probably won’t cut it anymore.
Pro tip: While you’re under there, take a look at your driveline components. Carrier bearings, slip stubs, and couplers often wear out quietly and can throw off geometry, especially if you’re chasing a vibration issue.
Tools You’ll Need Before Measuring
Before you start your driveshaft length measurement, make sure you’ve got the basics on hand:
- Tape measure (at least 60”)
- Pen and notepad or phone for notes
- Access to the underside of the vehicle (lift or jack stands)
- Proper safety gear (gloves, eye protection, wheel chocks)
When Should You Measure or Recheck Driveshaft Length?
Knowing how to measure for driveshaft length is especially important in the following situations:
- After a transmission swap
- When changing rear axles or gear ratios
- If your ride height has changed (e.g., lift/lower kits)
- When ordering a custom driveshaft
- After significant suspension upgrades or your old shaft no longer fully engages the yoke.
If you're in any of these scenarios, precise measurement is the only way to ensure your drive shaft specifications align with your truck’s new geometry. If you're working on a longer truck with a center support bearing, check your driveline tube specs too; OD and usable length have to match for proper balance and load capacity.
The Standard Method: How to Measure Driveshaft Length
Let’s get into how to measure a drive shaft length step by step.
Step 1: Set the Vehicle at Ride Height
Your truck must be sitting at its final ride height, not on a jack or with the rear hanging low. If you measure with the suspension unloaded, you’ll end up with a shaft that’s too long or too short once the truck is on the road. For trucks with coilover or leaf-spring suspensions, make sure the suspension is loaded as if it were ready to roll.
Step 2: Identify Measuring Points
Depending on your setup, you’ll usually measure:
- From the flat face of the transmission tailhousing or transfer case
- To the centerline of the rear U-joint or the flat face of the axle flange
If your driveshaft uses a slip yoke, subtract about ¾” from your measurement to allow for proper plunge. For bolt-on yokes, just measure face-to-face; no adjustment needed. Getting that end connection right is half the battle. Matching the correct U-joint or yoke series, whether it’s a 1350, 1410, or something oddball, is critical, especially on mixed setups or custom builds.
Step 3: Take the Measurement
Use your tape measure to record the distance from the transmission output seal face to the center of the U-joint cap at the differential. Record this number as your working driveshaft length. If you’re measuring for a custom driveshaft or converting from a two-piece to a one-piece, it’s a good idea to take the measurement twice and average the results.
Step 4: Communicate the Correct Specs
If you're ordering a shaft, your driveshaft supplier may also ask for the following:
- U-joint sizes or series (e.g., 1310, 1350, 1410)
- Spline count on the output shaft
- Flange type and bolt pattern
- Whether it’s for a 2WD or 4WD truck
- Suspension type and travel range
- Whether the vehicle uses a carrier bearing (for two-piece shafts)
Knowing how to measure for a drive shaft is just one part of the process; communicating the right specs ensures you get a perfect fit.
Common Mistakes When Measuring Driveshaft Length
- Measuring while the truck is lifted or unloaded. Always measure with the vehicle at final ride height.
- Measuring from the end of the yoke. Measure from the bottomed-out point of the slip yoke or the output seal face.
- Forgetting to account for travel. Custom shafts need clearance for in-and-out movement; don’t give exact fitment without factoring that in.
- Guessing flange or U-joint sizes. Use calipers or micrometers to get precise dimensions. Don’t guess the U-joint series. They’re not all interchangeable.
Measuring for a Custom Driveshaft
If you’re upgrading to a custom driveshaft, you’ll need to give your builder even more precision.
Key Details to Provide:
- Length from transmission to rear differential at ride height
- U-joint sizes or flange patterns
- Whether it’s a single or two-piece shaft
- Operating angles (optional but useful for high-performance builds)
- Maximum torque rating required
Professional builders can use this data to engineer a driveshaft with optimal length, strength, and balance, eliminating vibrations and maximizing durability.
Frequently Asked Questions
How to Measure Driveshaft Length for a Slip Yoke?
Measure from the end of the tailshaft housing to the center of the rear U-joint cap, subtracting ¾” to 1” for plunge.
How Do You Measure a Driveshaft With a Flange Yoke?
Measure from the transmission flange face to the differential flange face.
What’s the Difference Between Driveshaft Length and Working Length?
Working length is the operational length at ride height. Overall length includes yokes or flanges and may vary depending on the configuration.
